A bike that looks like a bike? So what?(It's electric)
With a near silent, stealth-like high torque motor which is smaller, lighter and more powerful than others.
It is just what the discreet electric cyclist needs. Only 16.5 Kgs - our lightest bike in fact.

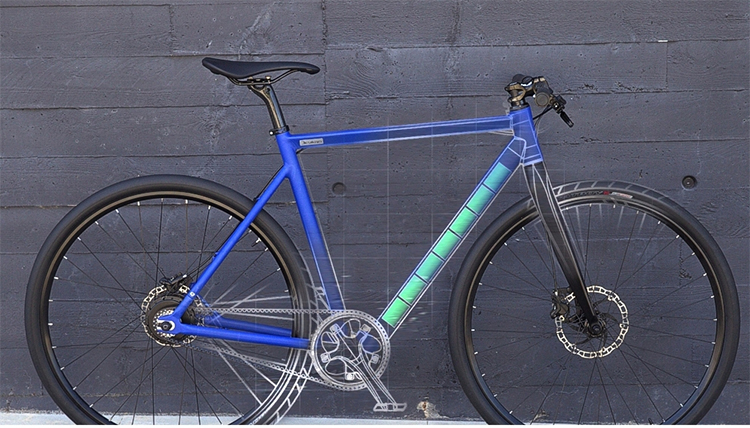

Can you spot the battery?
Hidden within the frame is a Samsung battery capable of taking you 18-38 miles (29-61Km) - probably much more. This isn't a range for everyone but it will suit many. Or simply choose the upgrade battery, good for 36-56 miles (58-90Km) and still completely hidden within the frame.
Hidden within the frame is a Samsung battery capable of taking you 18-38 miles (29-61Km) - probably much more. This isn't a range for everyone but it will suit many. Or simply choose the upgrade battery, good for 36-56 miles (58-90Km) and still completely hidden within the frame.
With levels of assistance to more than match your energy you and it will be playing footsie together in no time.
The drive system is so smooth and silent that you'll never be heard and the battery so well hidden no one will guess you're a savvy electric bike rider. But you will! Take it go home!
The drive system is so smooth and silent that you'll never be heard and the battery so well hidden no one will guess you're a savvy electric bike rider. But you will! Take it go home!
Shimano 7 or 8 Speed Acera derailleur with paddle shifters. From climbing steep hills to holding maximum speed on the flats and everything between, our Shimano has you covered.

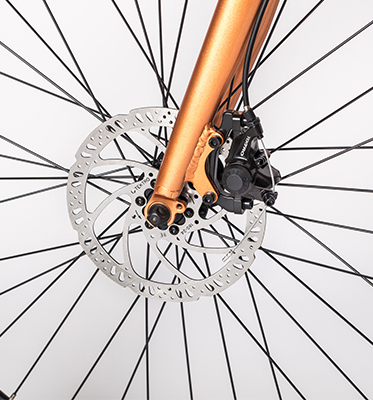

You need strong stopping power. These TEKTRO 180mm brakes will swiftly and reliably bring you to a halt. We offer hydraulic disc brakes as an optional upgrade.

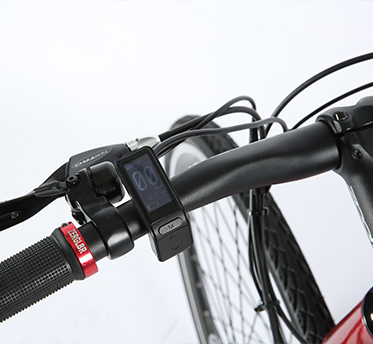

The Smart LCD displays information including speed, battery life, range, odometer, and pedal assist level. The control pad lets you to turn the bike on/off and adjust settings.
Only 16.5 Kgs - our lightest bike in fact.
Hidden within the frame is a Samsung battery.

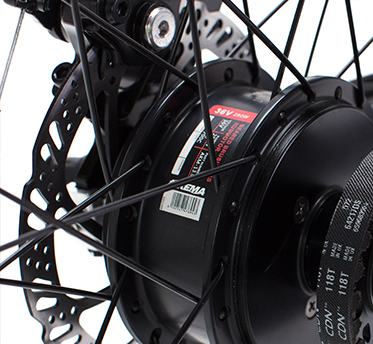

With a near silent, stealth-like high torque motor which is smaller, lighter and more powerful than others.
JULET Waterproof quick connector , easy for you to supply after-sales service.
|

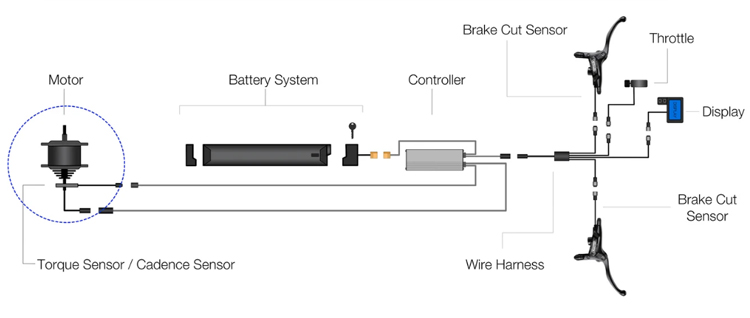

ELECTRIC SYSTEM
|
MAIN CONPONENTS
|
||
|
Motor
|
250W 36V Rear wheel Brushless motor
Motor cable quick release connector
|
Frame
|
6061 Alloy aluminium, 700X38C
|
|
Battery
|
36V 10.5ah, Lithium battery (Samsung)
All battery with electric protection circuit
|
Tyres
|
700X38C, KENDA
|
|
Display
|
Smart LCD display
|
Rim
|
Alloy aluminum CNC double wall
|
|
PAS
|
1:1 intelligent Pedal assistant system.
|
Front Fork
|
6061 Alloy aluminium
|
|
Controller
|
36V Intelligent brushless controller
|
Brake Lever
|
Tektro, Al alloy brake lever
|
|
Charger
|
36V 2A, Smart chager. 4-6H charging time
|
Brake system
|
Front Disc brake/ Rear Disc brake
|
|
PERFORMANCE
|
Pedal
|
Wellgo
|
|
|
Speed
|
25Km/h(EU),32Km/h(USA)
|
Gears
|
SHIMANO 7 speed, TOURNEY
|
|
Range
|
35Km full electric / 70km with PAS
|
Saddle
|
Kuns comfort
|
|
WARRANTY TERM
|
|||
|
According to your approved photos or Videos, any parts of the electric bike can be replaced during the guranteed time. If you have any problems,do not hesitate to cantact with me by Trademanager/Emall/Skype/whatsapp.We will be glad to solve problems at the first time.
|
|||
|
Motor
|
24 months
|
Frame
|
36 months
|
|
Battery
|
18 months
|
Front fork
|
12 months
|
|
Controller
|
12 months
|
Charger
|
12 months
|
