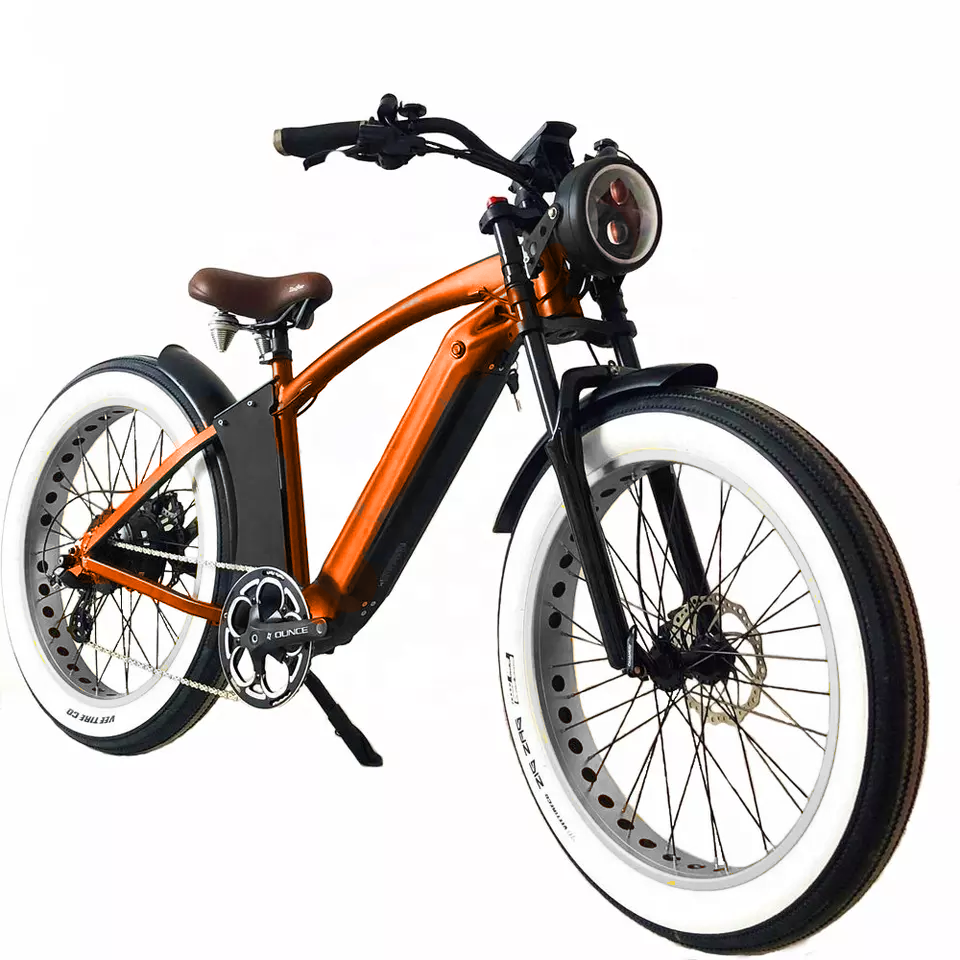

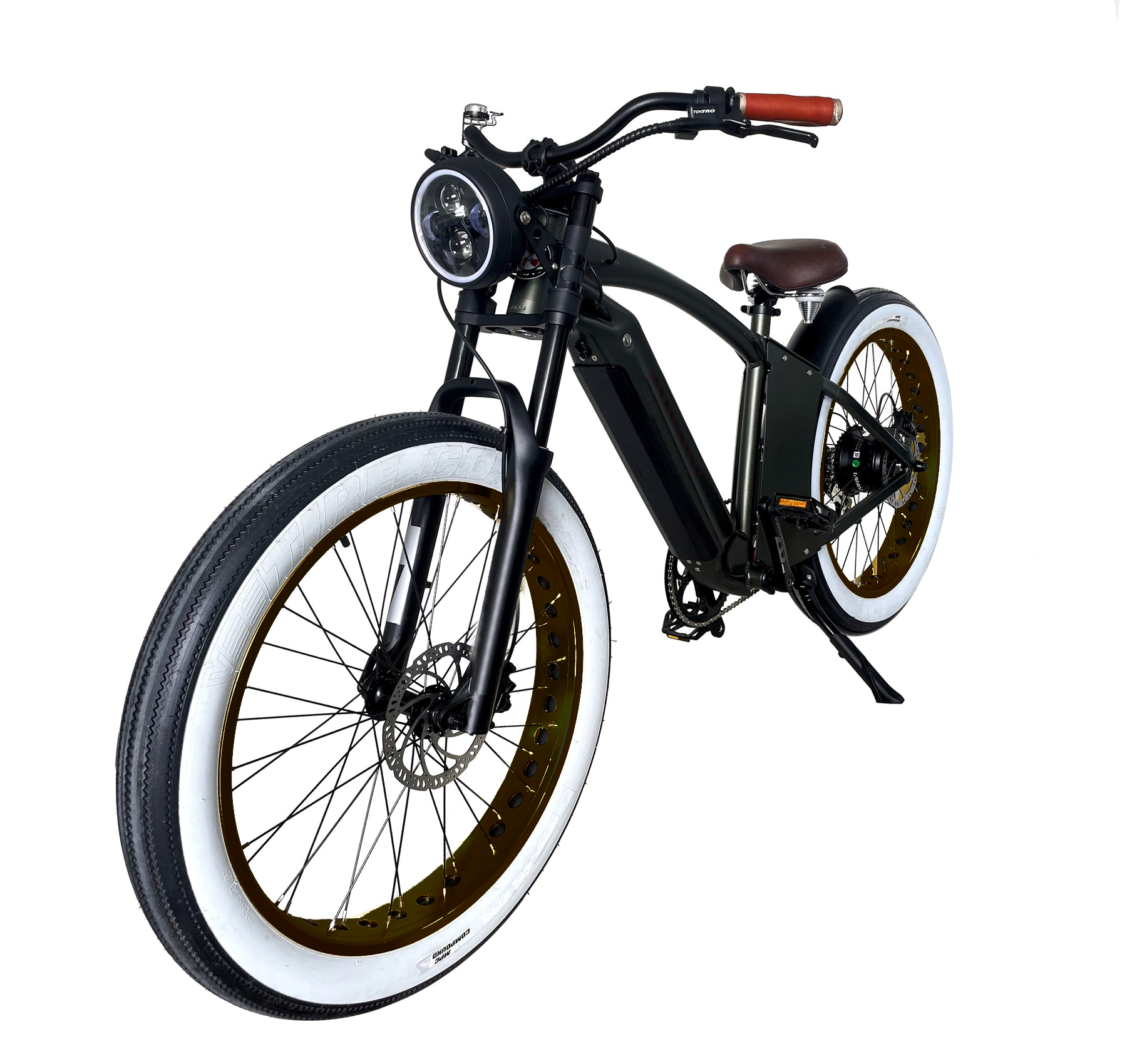

Introducing the ultimate electric bike experience - the VoltCycle eBike! With its powerful 1000W/500W motor and fat tires, you'll conquer any terrain with ease. But that's not all - our new popular dirt eBike is fully customizable with our OEM services. Whether you're a hardcore adventurer or a casual rider, the VoltCycle eBike is the perfect ride for you.
Products decritpion:
| Variant | HP-YT |
|---|---|
| Range per Power | > 60 km |
| Frame Material | Aluminum Alloy |
| Wheel Size | 26" |
| Max Speed | 30-50 Km/h, 25 Km/h-50 Km/h |
| Voltage | 48V |
| Power Supply | Lithium Battery |
| Braking System | Disc Brake |
| Torque | 80-90 Nm |
| Charging Time | > 3 hours |
| Motor Position | Rear Hub Motor |
| Battery Position | Integrated Battery |
| Battery Capacity | 13AH |
| Battery | 48V 10.4-20Ah Lithium Battery |
| Motor Power | 250W/500W/1000W Bafang motor |
| Display | LCD Display |
| Tire | 26''*4.0 Tire |
| Light | LED front light |
| Derailleur | 7-speed Shimano gear shift |
| Motor | Brushless |
| Gears | Single Speed |
|
Main Electric System |
||||
|
Motor |
48V 250-1000W rear hub motor (Bafang optional) |
|||
|
Battery |
48V 10.4-20Ah lithium battery (Samsung optional) |
|||
|
Controller |
48V 22A Sine wave Integrated controller |
|||
|
Display |
SW900 LCD display |
|||
|
Charger |
110-240v AC 50-60HZ, 48V2A |
|||
|
Pedal assist system |
5 levels PAS with speed sensor |
|||
|
Driving modes |
PAS & Thumb throttle |
|||
|
Main Components |
||||
|
Frame |
6061 Alloy Aluminum |
|||
|
Fork |
MOZO suspension fork |
|||
|
Rims |
Double wall, aluminum alloy, 36H*13G |
|||
|
Tires |
Kenda, 26 *4.0 tire (VEE tire optional) |
|||
|
Brake (F/R) system |
Front & Rear disc brake |
|||
|
Brake level |
Aluminum, power cut off when braking |
|||
|
Gear system |
7 gears,Shimano |
|||
|
Light system |
Front & Rear LED light |
|||
|
Derailleur system |
7 gears,Shimano |
|||
|
Saddle |
Comfortable Saddle |
|||
|
Pedal |
Alloy aluminum with reflector,Wellgo VB087 |
|||
|
Crankset |
48T, Alloy Aluminum crank,Prowheel |
|||
|
Chain |
Rust resistant chain,KMC |
|||
|
Rear rack |
Equiped |
|||
|
Fenders |
Equiped |
|||
|
Performance |
||||
|
Max speed |
EU:25KM/H NA:32KM/H MAX:50KM/H |
|||
|
Travel distance |
30km by Throttle, 40-60km by PAS |
|||
|
Loading capacity |
120kgs |
|||
|
Charging time & Life |
4-6 Hours, >900 Cycles |
|||
|
N.W./G.W. |
35KG/39KG |
|||
|
Carton size |
165X29X90CM |
|||
|
Container loading |
68pcs/20ft; 168pcs/40HQ |
|||
|
Warranty |
||||
|
Motor |
2 years |
|||
|
Battery |
2 years |
|||
|
Controller |
1.5 years |
|||
|
Frame |
2 years |
|||
|
Charger |
1.5 year |
|||
|
Others |
0.5 year |
|||
