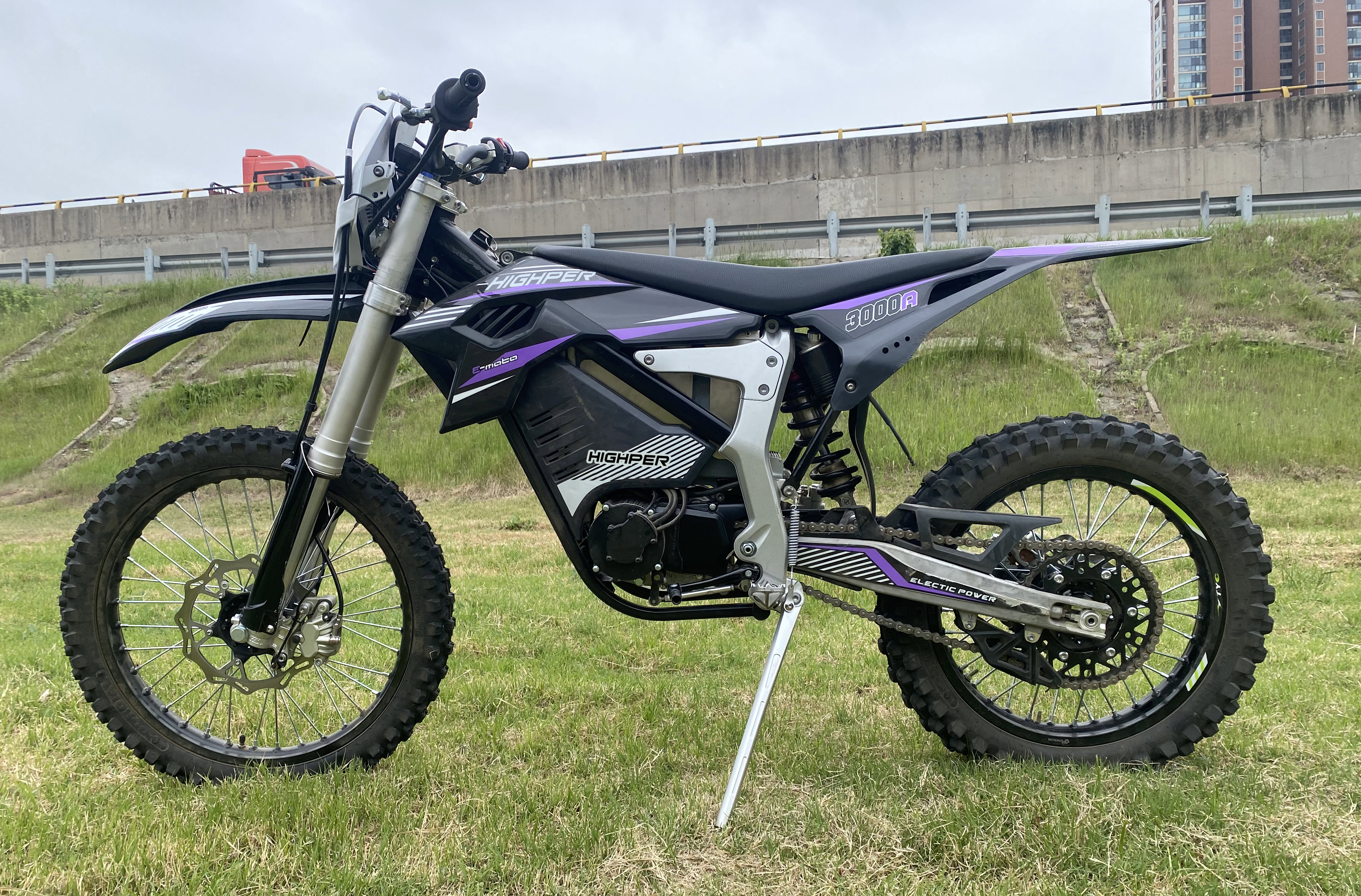

Conquer the rugged terrain with unrivaled power and precision, as the VoltCycle effortlessly propels you through dirt tracks, trails, and off-road challenges with lightning-fast acceleration. Its cutting-edge electric motor ensures an instant burst of torque, delivering the spine-tingling performance that will leave you breathless.
Forged aluminum frame #6061. Forged aluminum rear swing arm #6061.

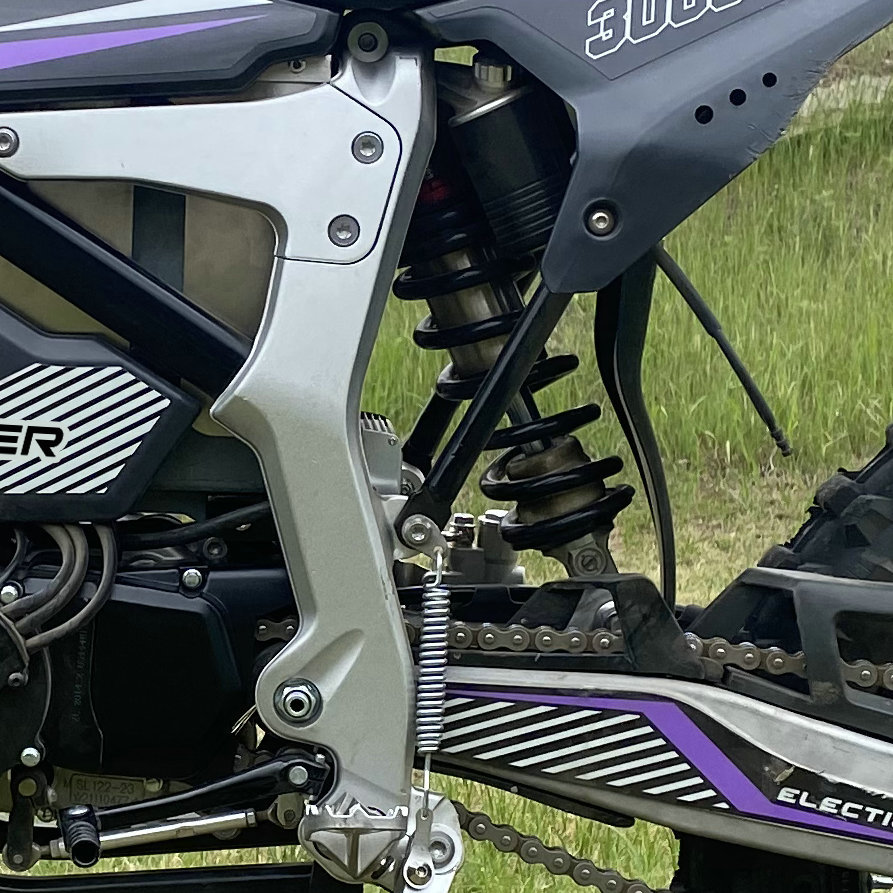

Dual adjustable rear shock.
Dual adjustable rear shock.

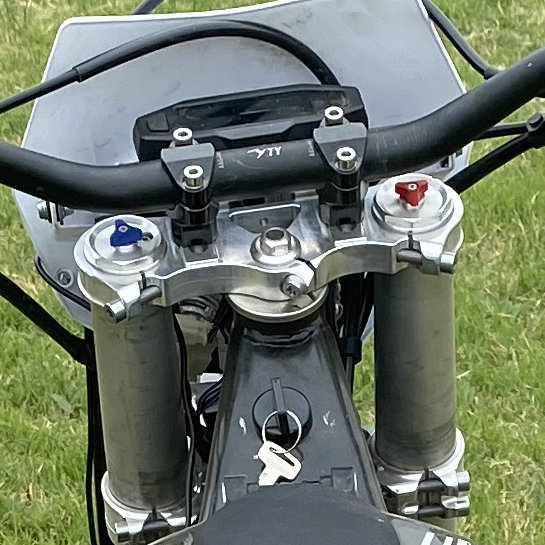

CNC triple clamps.
Inverted hydraulic dual adjustable forks.
LCD meter.
Tapered aluminum handlebar.
LCD meter.
Tapered aluminum handlebar.

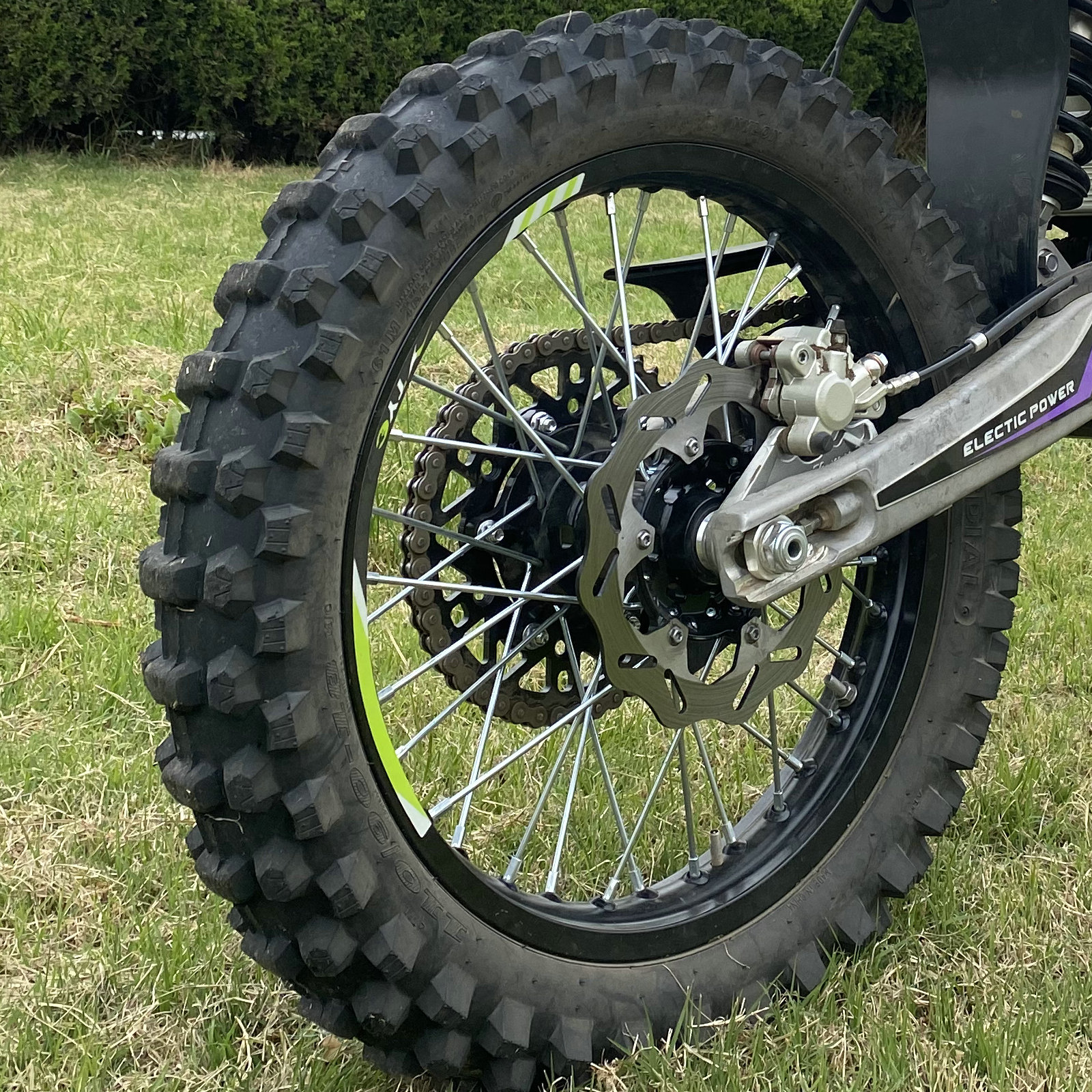

7116 alloy rims.
Casted alloy hubs.
Copper-base brake pads.
Copper-base brake pads.
Driving chain: #520.
High-strength steel rear sprocket.

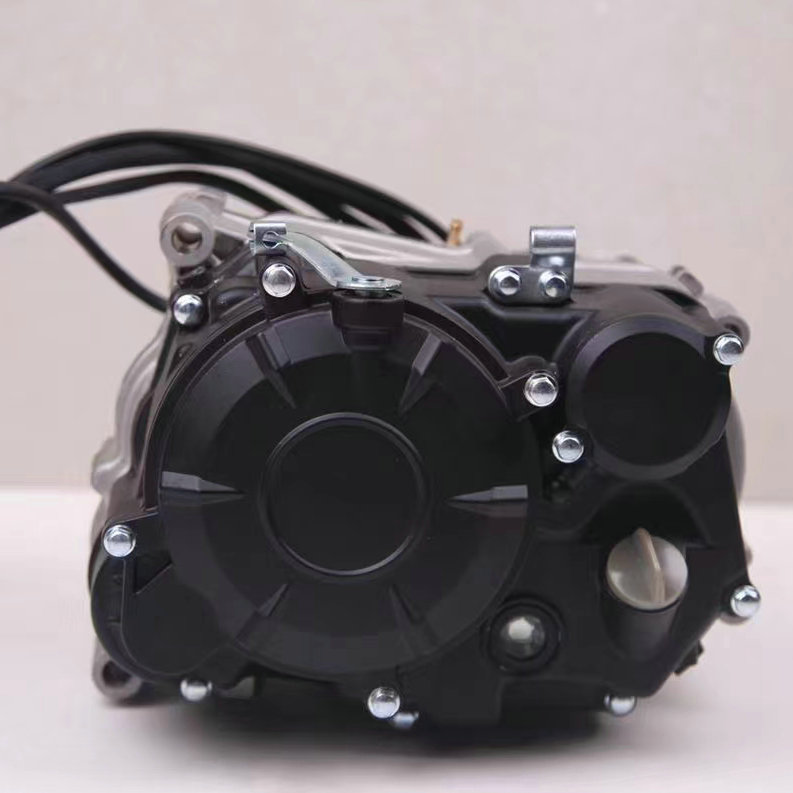

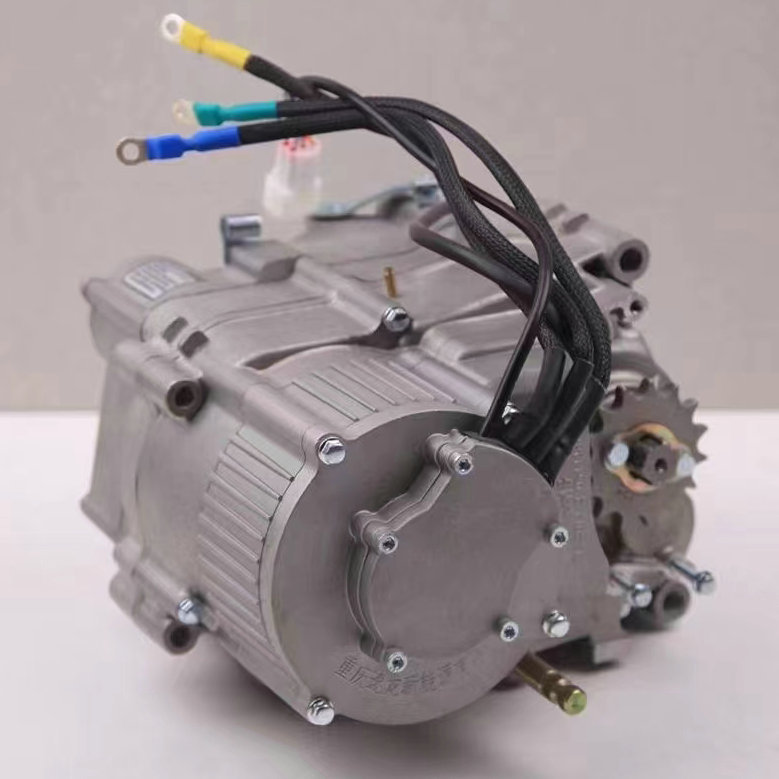

DC permanent magnet synchronous motor.
Gears: 0-1-2-3-4-5.
Motor peak power 12kw.
Motor rated power 3kw.
|
MOTOR:
|
DC PERMANENT MAGNET SYNCHRONOUS, MIDDLE LOCATED, 0-1-2-3-4 FORWARD GEAR
|
F&R TIRE:
|
CY
|
|
MOTOR VOLT:
|
72V
|
LITHIUM CELL TYPE:
|
CATL (TESLA SUPPLIER)
|
|
RATED POWER:
|
3KW
|
ALL SET OF LIGHT:
|
LED
|
|
MOTOR PEAK POWER:
|
12KW
|
METER:
|
LCD
|
|
MOTOR PEAK TORQUE(N):
|
65
|
RIM & HUB:
|
7116 ALLOY RIM, CASTED HUB
|
|
RATED CAPACITY OF BATTERY:
|
40AH/50AH/60AH
|
FAME:
|
METALQ345B+6061 FORGED ALUMINUM ALLOY
|
|
BATTERY VOLTAGE MAX.:
|
84V
|
REAR FORK:
|
ALUMINIUM ALLOY
|
|
PEAK OUTPUT CURRENT OF BATTERY:
|
300A
|
DRIVEN CHAIN:
|
520
|
|
CONTINUOUS OUTPUT CURRENT OF THE BATTERY:
|
150A
|
DRIVEN SPROCKET:
|
STEEL
|
|
MAX SPEED:
|
125KM/H
|
F&R DISC BRAKE PAD:
|
COPPER BASE
|
|
L×W×H (MM):
|
2120×840×1225
|
0KM/H-100KM:
|
5S
|
|
WHEELBASE (MM):
|
1424
|
HAND BAR:
|
ALUMINIUM ALLOY
|
|
SEAT HEIGHT (MM):
|
900
|
STEERING:
|
ALUMINIUM ALLOY7075
|
|
GROUND CLEARANCE (MM):
|
318
|
BRAKE & CLUTCH LEVER:
|
ALUMINIUM ALLOY
|
|
DRY WEIGHT:
|
108KG
|
BATTERY REPLACEMENT:
|
QUICK REPLACEMENT
|
|
BRAKE (FRONT/REAR):
|
DISK/DISK
|
TIME TO REPLACE:
|
60S
|
|
FRONT TYRE TYPE:
|
80/100-21
|
TRIPLE CLAMPS:
|
CNC
|
|
REAR TYRE TYPE:
|
110/90-18
|
CHARGING TIME(H):
|
3H (15A CHARGER)
|
|
F&R ABSORBER:
|
MNT SINGLE CAVITY DOUBLE ADJUSTABLE
|
MAX. LOADING:
|
150KG
|
-->
