Type no
|
XSJ800DQT-6
|
|
Dimension (mm)
|
1800×750×1080
|
|
Wheelbase (mm)
|
1330
|
|
Ground clearance(mm)
|
130
|
|
Weight(kg)
|
95
|
|
Max Weight(kg)
|
170
|
|
Rated passenger
|
one
|
|
Brake system
|
Front disc Rear drum brake
|
|
Brake operation
|
Front manual/rear manual
|
|
Tire size
|
3.00-10 Vacuum
|
|
Tire pressure (kpa)
|
250/250
|
|
Battery capacity
|
20AH
|
|
Motor type
|
Permanent magnet DC, brushless
|
|
Motor Specifications
|
213-30H
|
|
Rated voltage（v）
|
60
|
|
Rated speed（r/min）
|
510
|
|
Rated power(w)
|
800
|
|
Controller undervoltage protection value
|
52.5±0.5V
|
|
Controller overcurrent protection value
|
32±1A
|
|
Charger input power supply and frequency
|
220V/50Hz
|

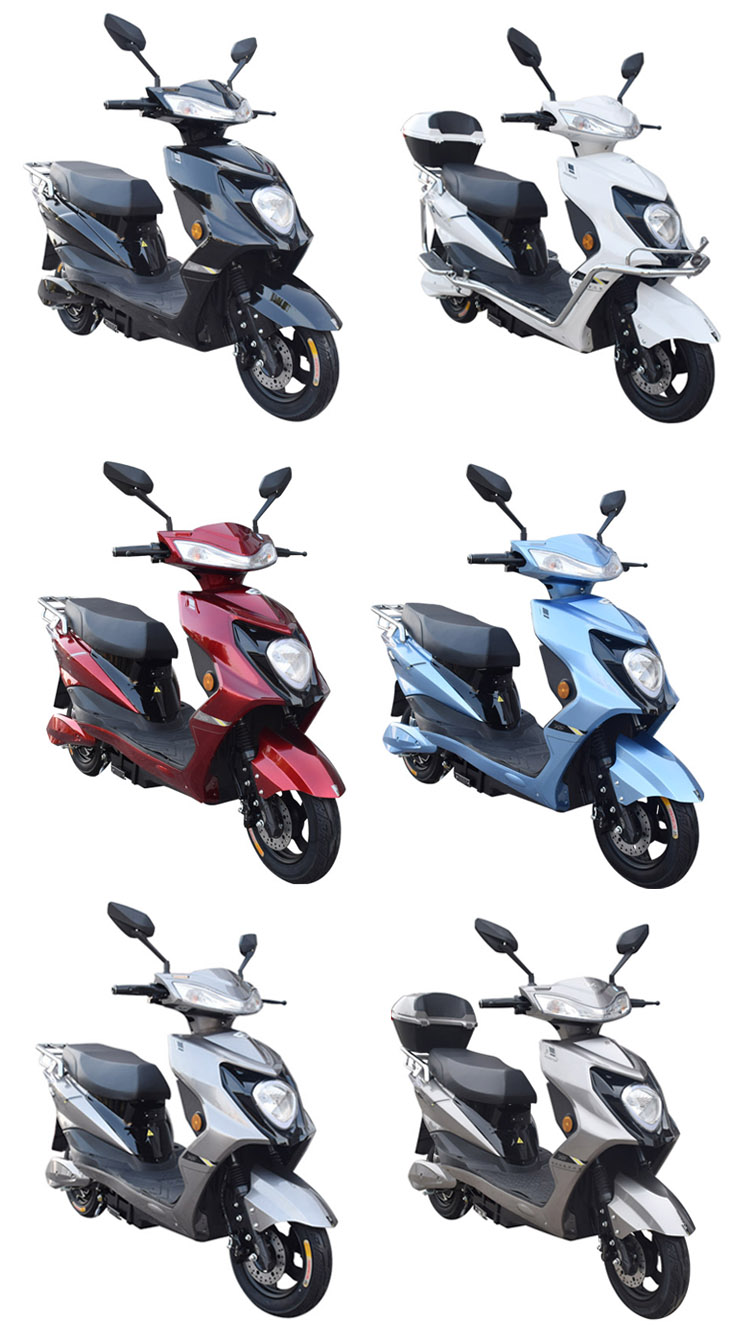

Product Display

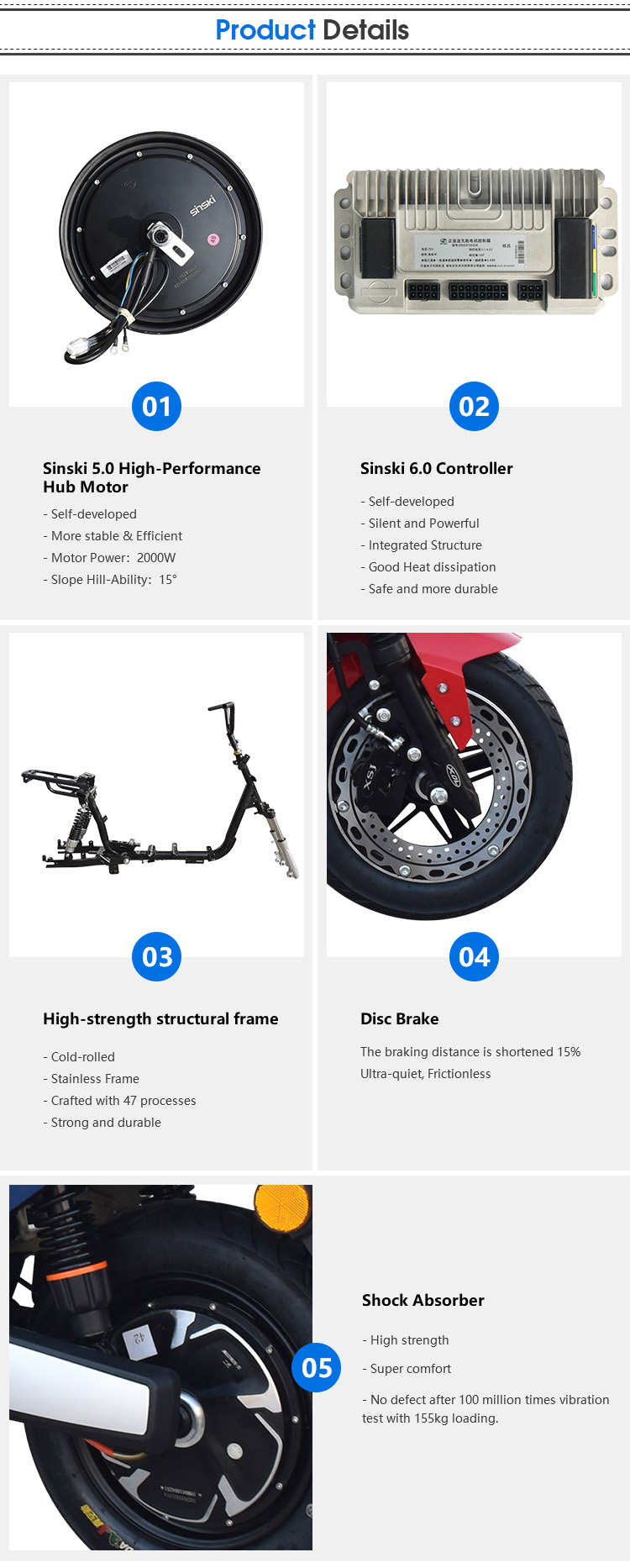

Details Images
-->
