Designed with your safety in mind, the Adult Electric ATV UTV features top-of-the-line safety features, including robust suspension for a smooth and controlled ride, a reliable braking system for quick stops, and durable construction for maximum protection.
|
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|||
|
Motor
|
Rated Power:7.5/10/15kw
|
Duty:S1
|
Max. Speed:7500rpm
|
|
Rated Voltage:72/96/108v
|
Net Weight:35~50kg
|
Speed Sensor:64 Pulse
|
|
|
|
Rated Speed:3000~4500rpm
|
|
|
|
Controller
|
Rated Voltage:72/96/108v
|
Rated Output Current:100/120a
|
Max. Output Current:500a
|
|
Efficiency:98%
|
Protection Grade:IP65
|
Packing:wooden box
|
|
|
Net Weight:5~10kg
|
Ambient Temperature:-40 ~ 50℃
|
HS:8714990000
|
|
|
Gearbox
|
Speed Capacity:9000rpm
|
Ratio:6:1/8:1/10:1/12:1
|
Packing:wooden box
|
|
Torque Capacity:180N.m
|
Center Distance:50~106mm
|
HS:7326909000
|
|
|
Noise:≤65dB
|
Est. Net Weight:15~30kg
|
|
|
Main Features
1) High torque and fast speed
2) Hands-on instruction, installation and use
3) Provide customers the fastest system solutions
4) Work with clients to calculate and test
5) Long time system testing, product maturity
(Click the Following Corresponding Pictures for More Information)
Name: AC Motor
Brand: SHINEGLE
Original: China
Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.
Name: Motor Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.
Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.

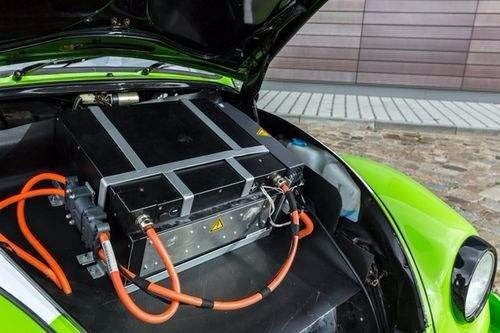

Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000km protection for our customers.
Pre-Sales Service
* Customer sends inquiry
* Tailor the right system
* Sample testing support
After-Sales Service
* Timely technical communication
* Result feedback and improvement
