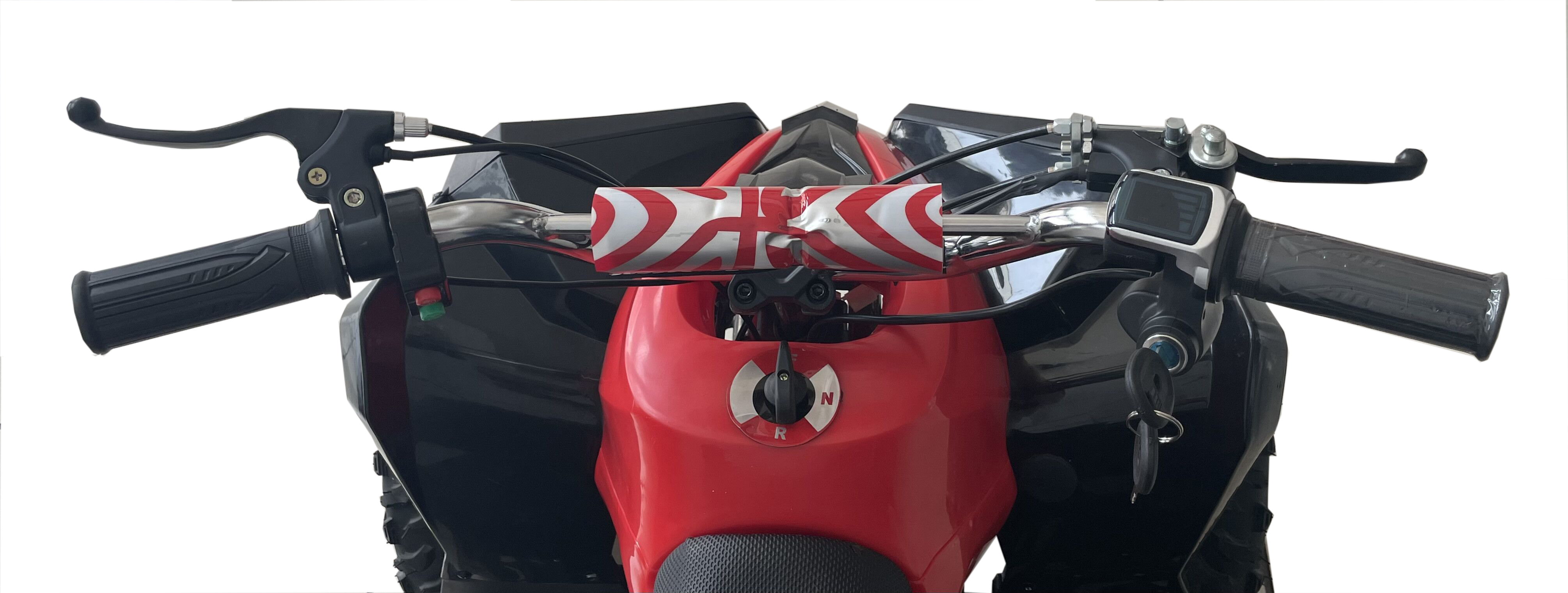

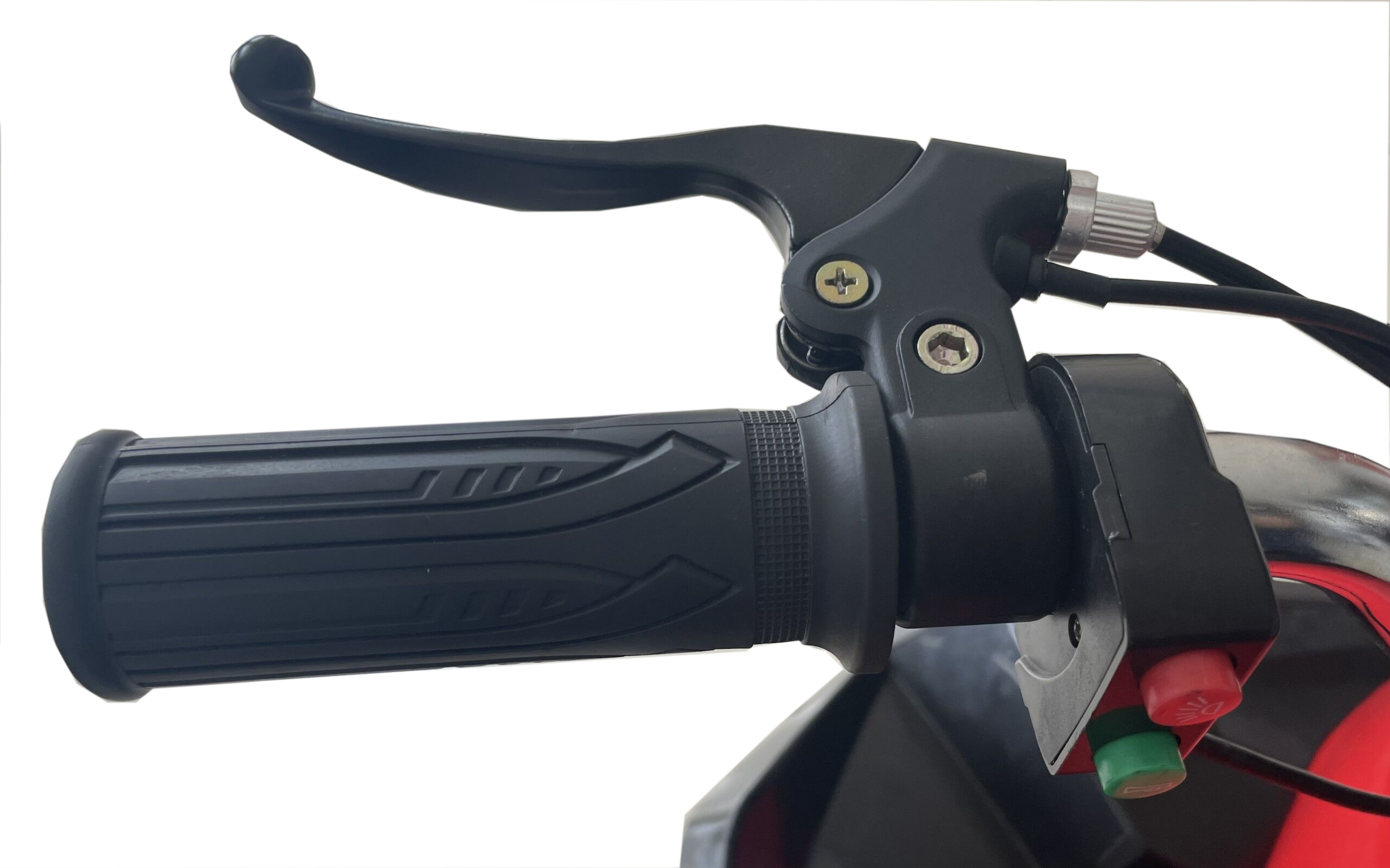

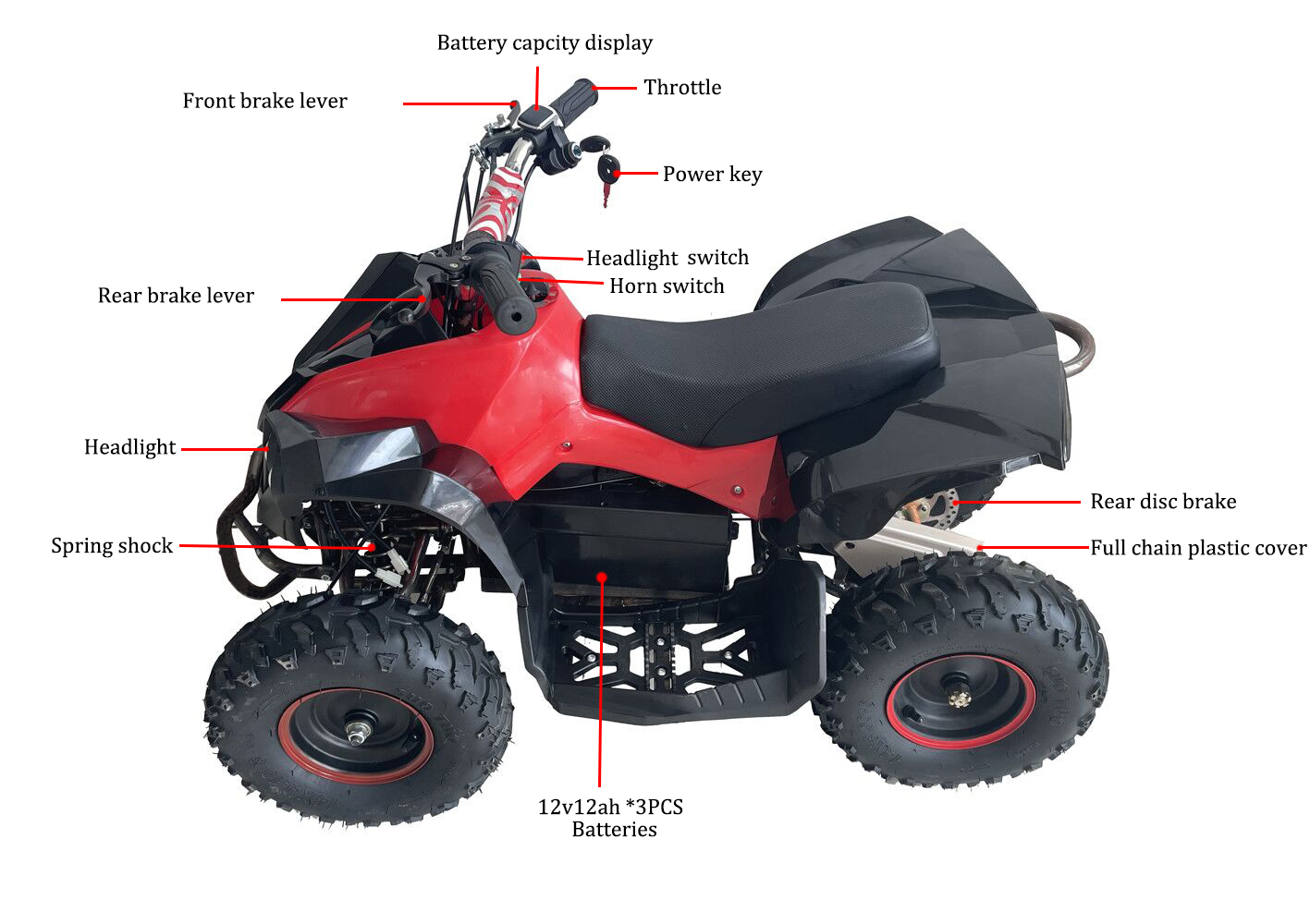

* Left brake lever
* Horn
* Headlight
* F Gear -Forward
（Speed 15/20/30km/h）
* N Gear-Neutral
* R Gear-Reverse

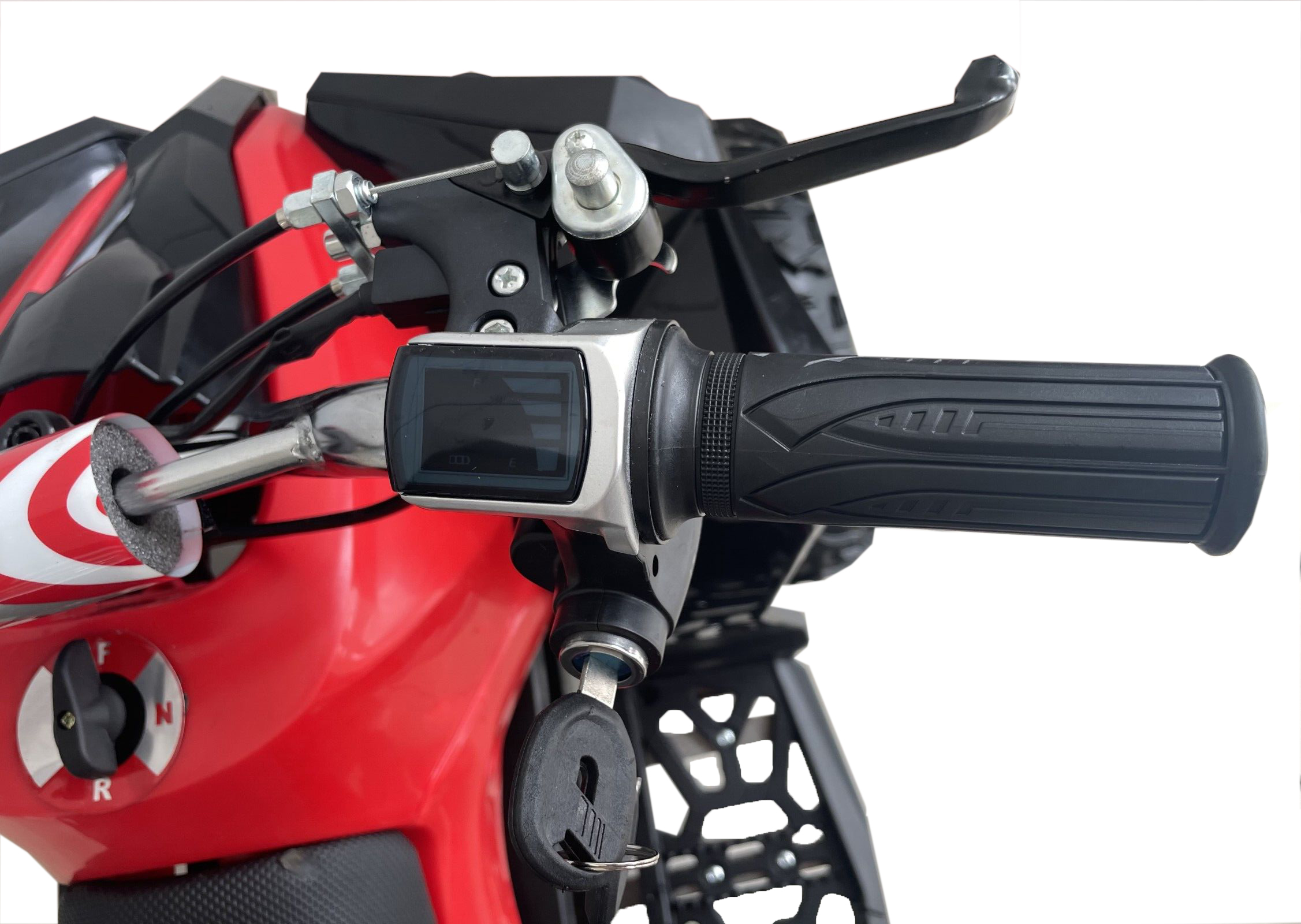

* Battery capacity display * Right brake lever
* Throttle
* Power key

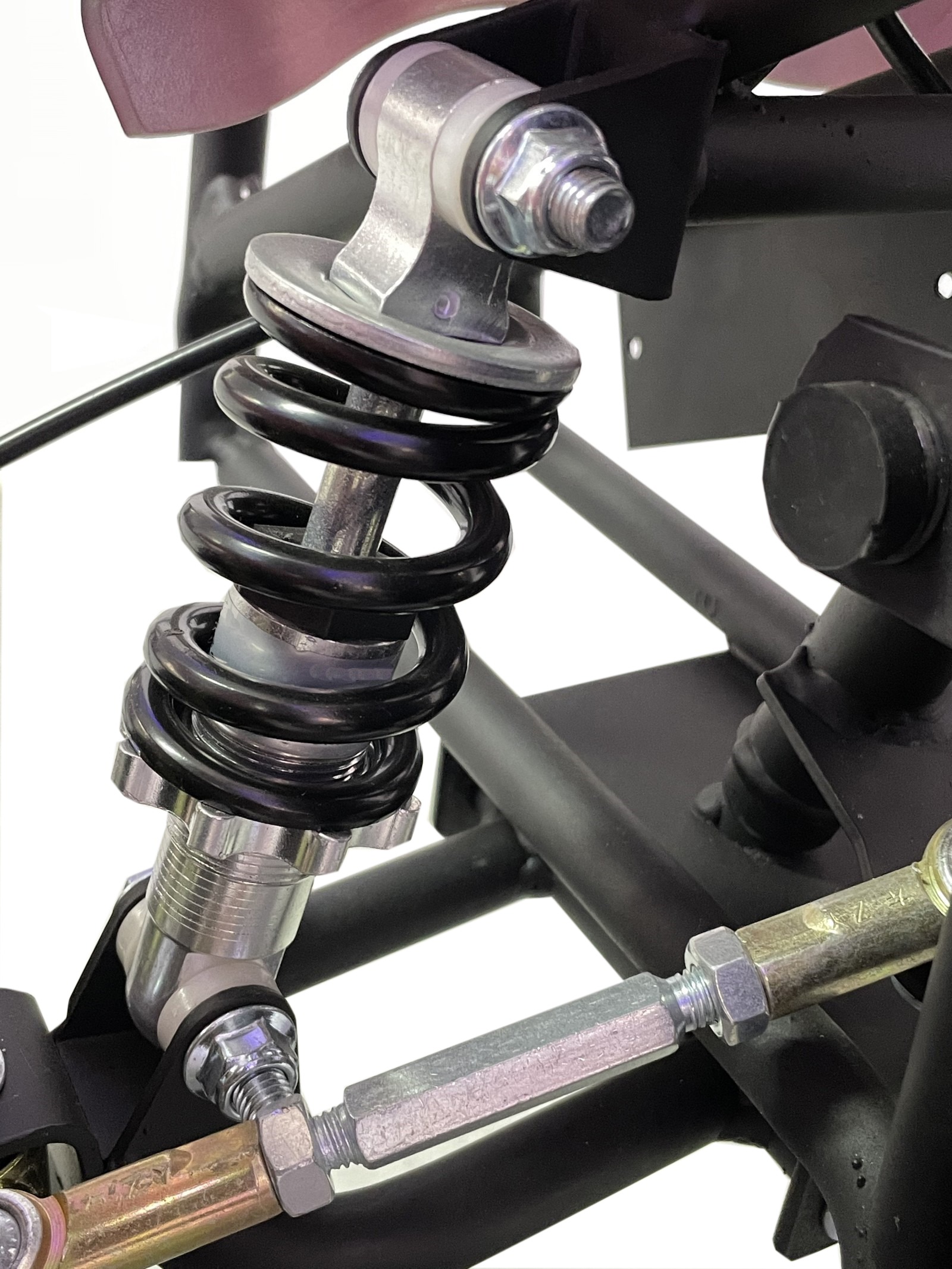

*Spring damper
*1000W motor

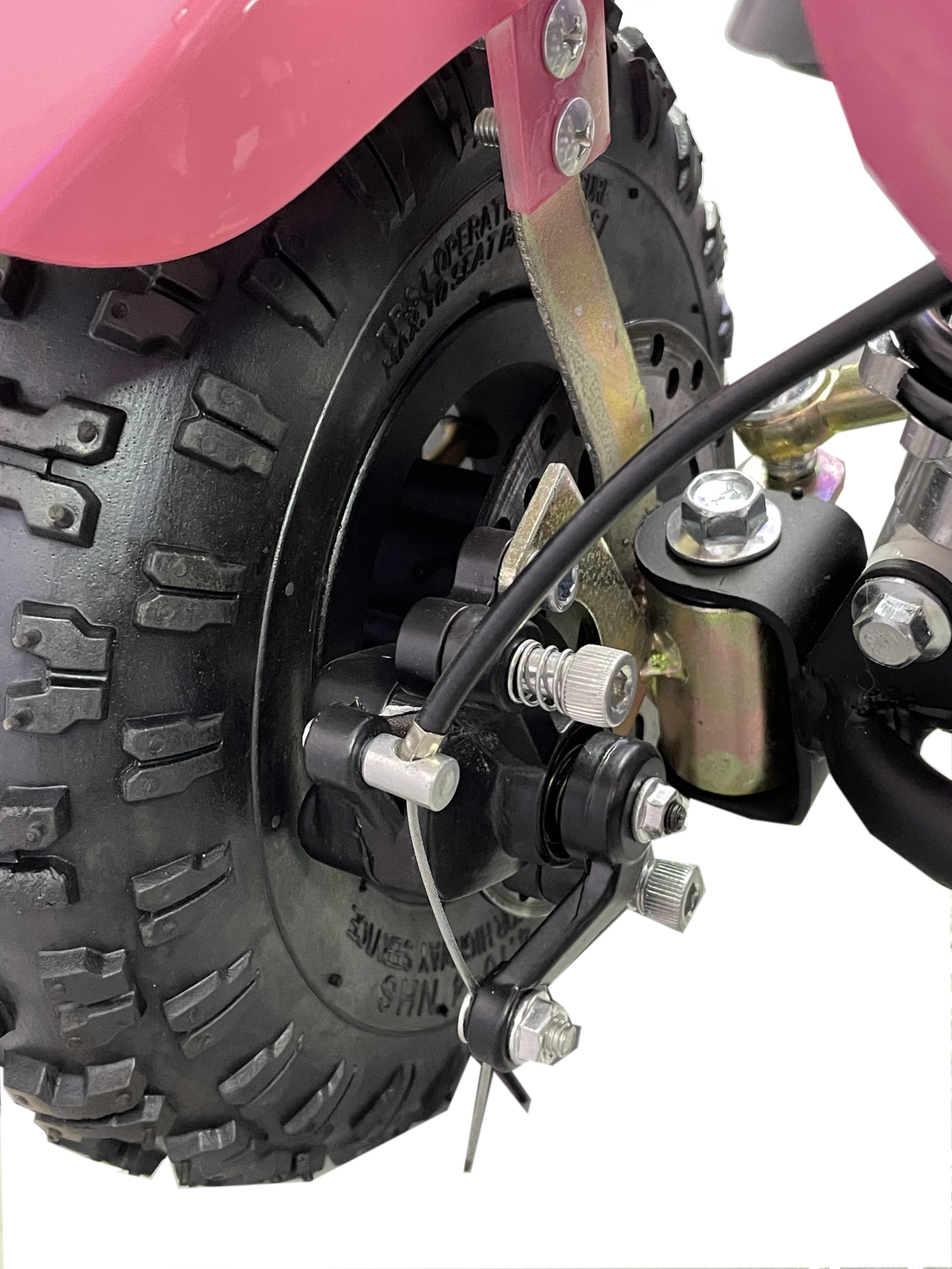

*Rear disc brake
*Rear spring damper
*Full chain plastic cover
*Rear disc brake
Specification
|
Motor
|
48V/1000W
|
|
Controller
|
48V/1000W
|
|
Chain wheel
|
25H9/80
|
|
Chain
|
25H86knots
|
|
Front wheel（with inner tire）
|
14*4.10-6
|
|
Rear wheel（with inner tire）
|
14*5.00-6
|
|
Battery
|
12v12ah *4PCS
|
|
Brake
|
Front Disc brake120#，Rear Disc Brake140#
|
|
Seat higher
|
540mm
|
|
Gear1/2/3+Reverse+speed
|
Gear1-15km/h，Gear2-20km/h，Gear3-30km/h
|
|
Runing time
|
55mins
|
|
Loading weight
|
54kgs
|
|
N.W
|
60kgs
|
|
G.W
|
62kgs
|
|
Alex distance
|
720mm
|
|
Front wheel distance
|
585mm
|
|
Rear wheel distance
|
455mm
|
|

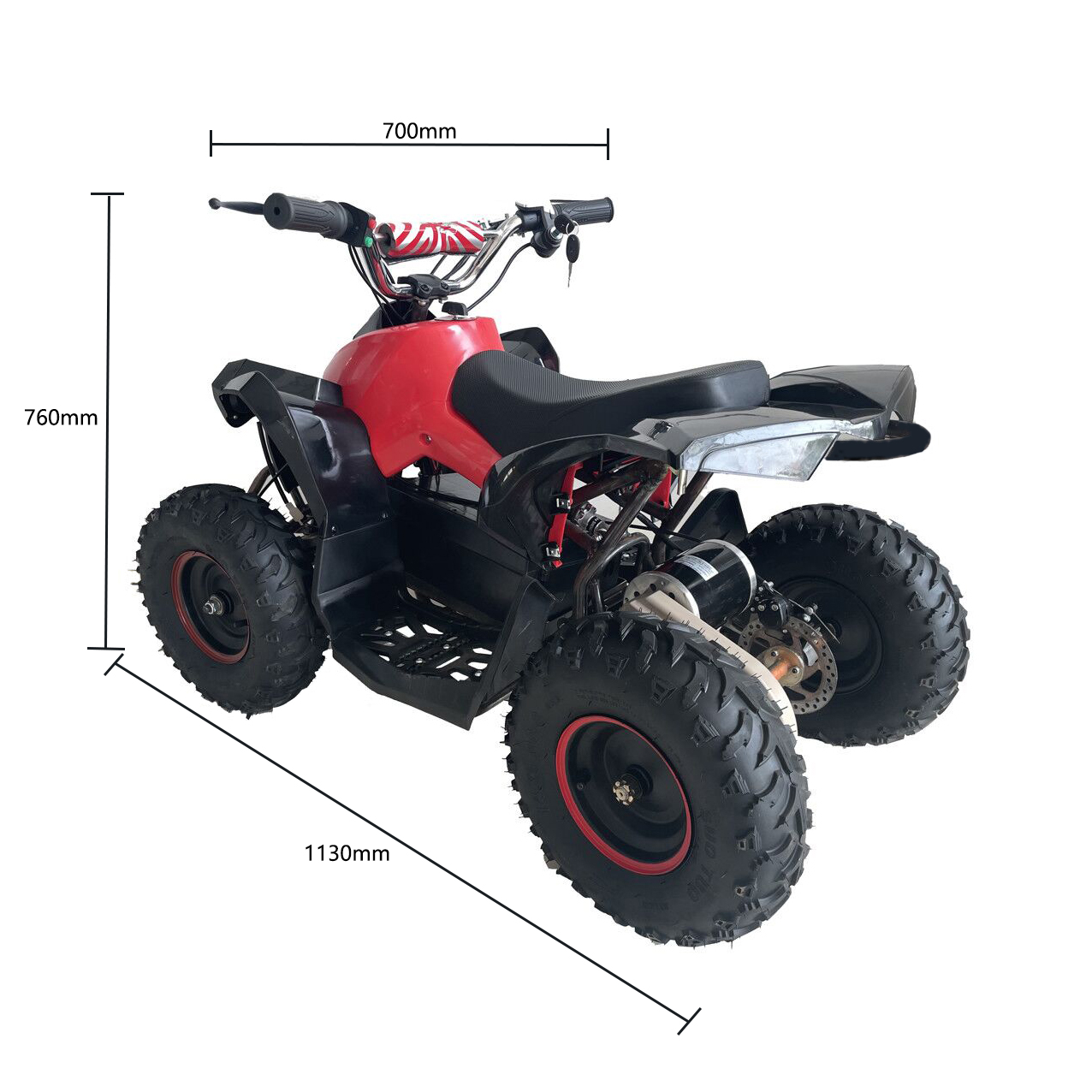

Product size
|
1130*700*760mm
|
|
Package size
|
1160*570*510mm
|
|
Package style
|
iron frame +carton
|
|
Color available
|
Pink，Green，Blue，Orange，Red，Yellow
|
|
Remote
|
NO，optional
|
|
Battery capacity display
|
yes
|
|
HORN Radio
|
Yes
|
|
Full chain cover
|
Yes
|
|
Rear reflector
|
Yes
|
|
Container capacity
|
20GP:80PCS; 40HQ:200PCS
|
-->
