No
|
Item
|
Data
|
|
1
|
Description
|

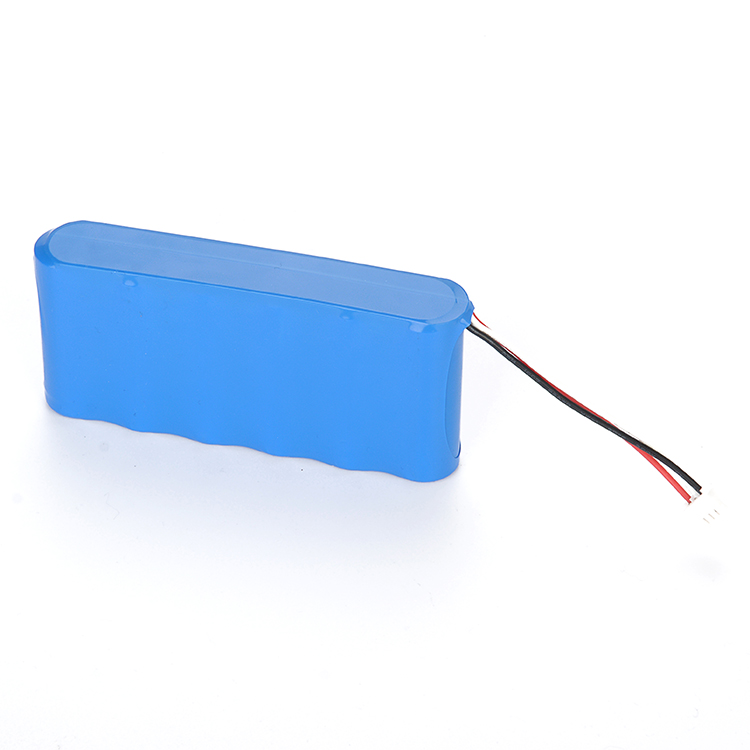

3S1P 10.8v lithium ion battery pack
|
|
2
|
Battery Type
|
18650 Li ion cell
|
|
3
|
Typical Capacity
|
2200mah
|
|
4
|
Typical Voltage
|
10.8V
|
|
5
|
Maximum Continuous Discharging Current
|
20A
|
|
6
|
Resistance
|
≤200mΩ
|
|
7
|
Protection Circuit
|
Over-charge protection, Over-discharge protection,
Over-current protection, Short-circuit protection, |
|
8
|
Dimension
|
66*55*20mm
|
|
9
|
Operation Temperature Range
|
Charging temperature: 0~45°C
Discharging temperature: -20~60°C
|
|
10
|
Price
|
We will quote for you as your spec and demands
|
How to custom a pack
How to protect your battery?
We can customize a PCB, PCM and BMS protection circuit for your battery and battery packs.
Please check following details:
How does protection IC protect your battery?
Reliable battery protection with advanced precision and integration
Battery protection IC detects a variety of fault conditions such as overvoltage, under-voltage, discharge overcurrent, and short circuit, and range from simple (OV only) to advanced (more faults detected).
