Specifications
Dimension: 2690 X 1290 X 1820mm
Ground Clearance: 300mm
Wheelbase: 1800mm
Minimum Turning Radius: 4650mm
Net weight: 570kgs
Front Brake System: Twin Hydraulic Disk Brakes
Rear Brake System: Twin Hydraulic Disk Brakes
Max Speed: 60km/h high speed; 30km/h low speed
Maximum Climbing: 38°
Tire Size: 25x8-12 / 25x10-12
Suspension: Four Wheel Independent Suspension
Longest Mileage after being charged: 100-150km
Battery: 72V 150Ah Lithium Battery
Battery Charging Time: 3-5 hours
Motor Power: 7.5KW 72V /10KW
Type of Power-generation: Brushless AC Motor
Drive system: 4x4WD
Loading Capacity: 350kgs
Seating capacity: 2 Person
1x20'ft container: 7pcs
1x40'hq container: 18pcs
Ground Clearance: 300mm
Wheelbase: 1800mm
Minimum Turning Radius: 4650mm
Net weight: 570kgs
Front Brake System: Twin Hydraulic Disk Brakes
Rear Brake System: Twin Hydraulic Disk Brakes
Max Speed: 60km/h high speed; 30km/h low speed
Maximum Climbing: 38°
Tire Size: 25x8-12 / 25x10-12
Suspension: Four Wheel Independent Suspension
Longest Mileage after being charged: 100-150km
Battery: 72V 150Ah Lithium Battery
Battery Charging Time: 3-5 hours
Motor Power: 7.5KW 72V /10KW
Type of Power-generation: Brushless AC Motor
Drive system: 4x4WD
Loading Capacity: 350kgs
Seating capacity: 2 Person
1x20'ft container: 7pcs
1x40'hq container: 18pcs

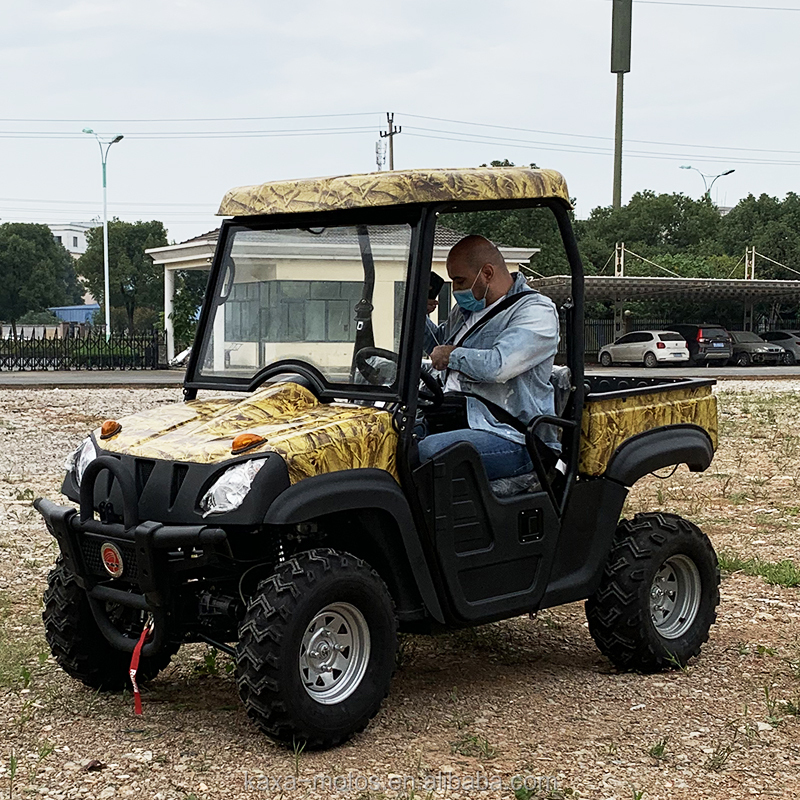

Detailed Images
