With the 3.7V NMC 180Ah 4S1P 14.8V EV Battery Pack, you'll experience a new level of freedom and convenience. Bid farewell to the limitations of traditional fuel-powered vehicles as you unlock the true potential of green transportation. Say hello to longer drives, shorter charging times, and a sustainable future that will leave you breathless.
Feature:
1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection
1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection
9. Long cycle life more than 1500 times
10. Good consistency, low self discharge
|
Battery type
|
NMC 4s1p
|
|
Nominal Voltage(V)
|
14.8V
|
|

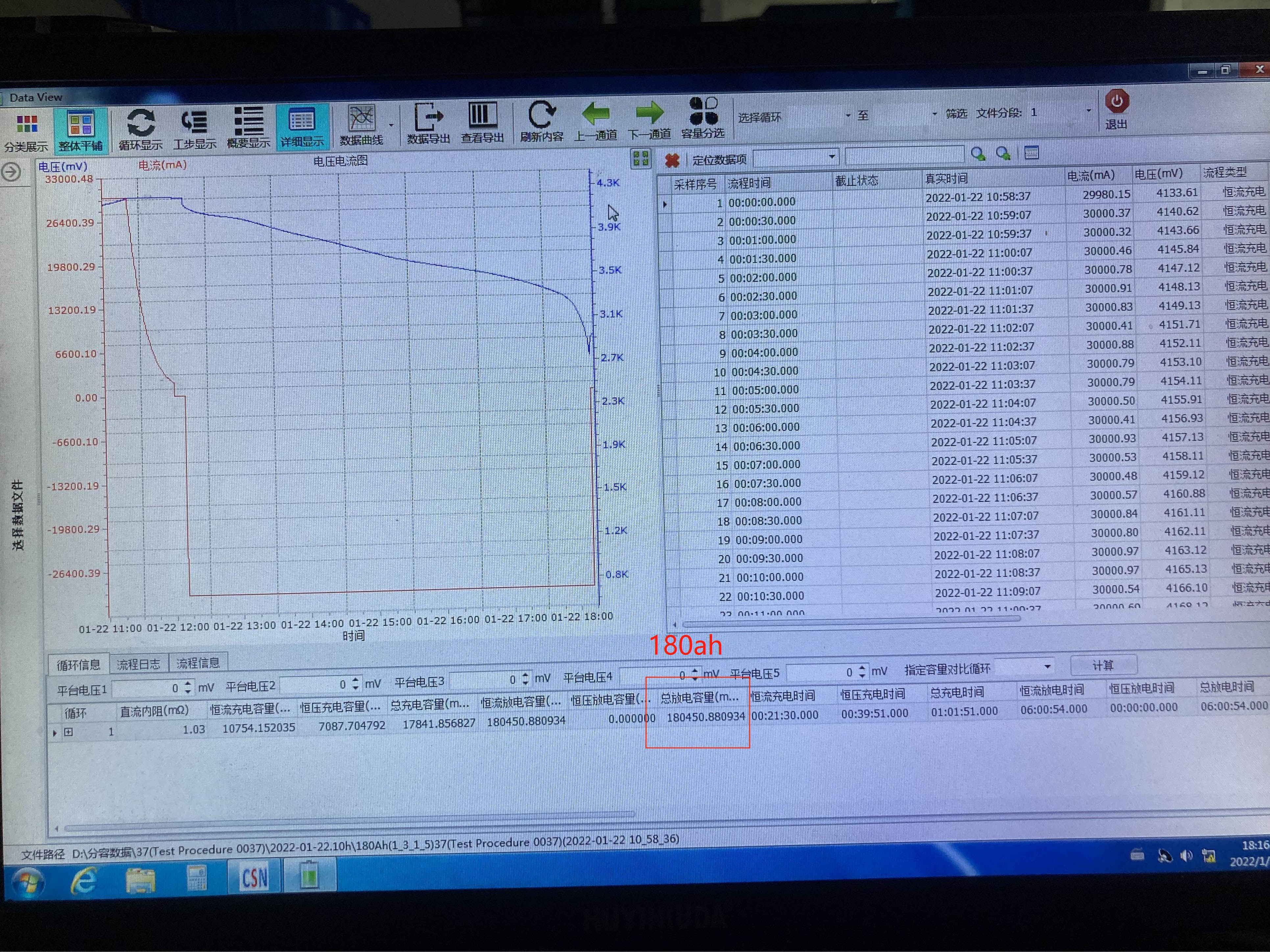

Nominal Capacity
|
180Ah
|
|
Cell inside
|
CATL 3.7V 180AH NMC cells
|
|
Configuration
|
4S1P
|
|
1Max charge current
|
1C
|
|
Max discharge current
|
3C
|
|
Standard Charge current
|
0.2C-0.5C
|
|
Full Charged Voltage
|
16.8V
|
|
Charge Cut-off Voltage
|
17V
|
|
Discharge Cut-off Voltage
|
11V
|
|
Net Weight
|
10.85KG
|
|

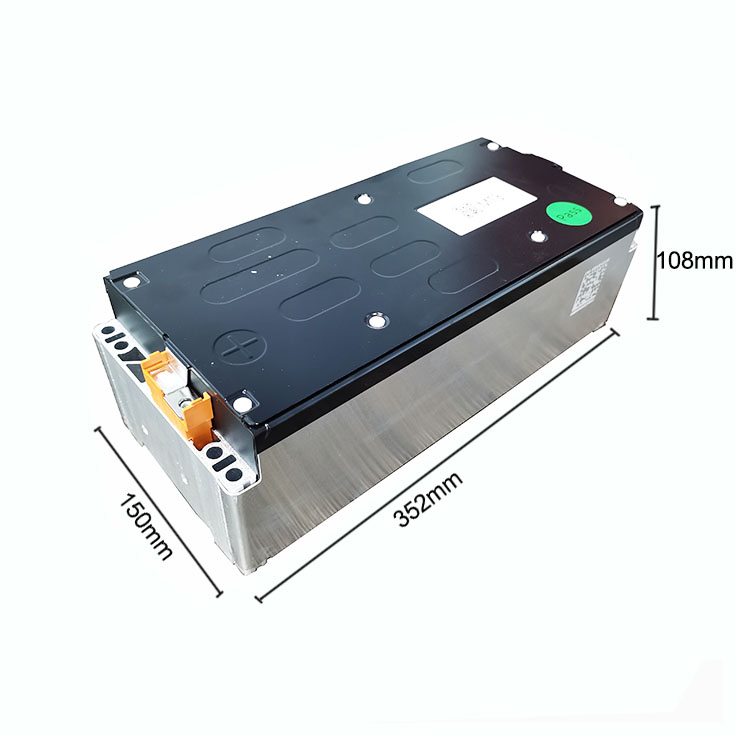

Dimensions
|
L352*W150*H108mm
|
|
Cycle Life
|
1500times(80% of initial capacity at 0.2C rate, IEC Standard)
|
|
Operating Temperature
|
Charging: 0~55Centigrade
|
|
Discharge Temperature(℃)：
|
-20~55Centigrade
|
|
Storage Temperature
|
-20~45Centigrade
|
|
Connector
|
Threaded terminals
|
Attention:
1.Do not expose to, dispose of the battery in fire.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make, type, or model batteries.
8.Keep out of the reach of children.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make, type, or model batteries.
8.Keep out of the reach of children.

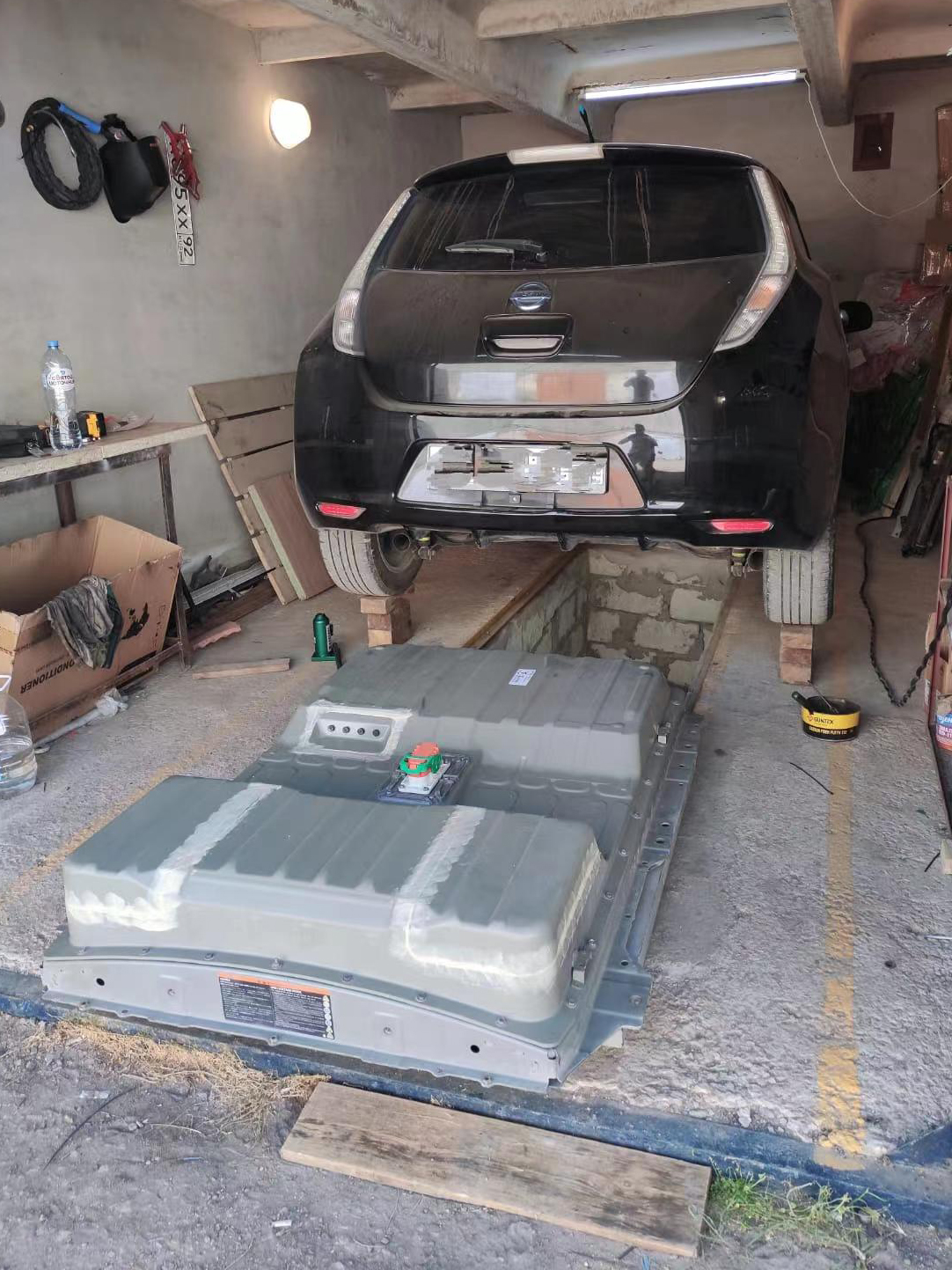

Application
-->
