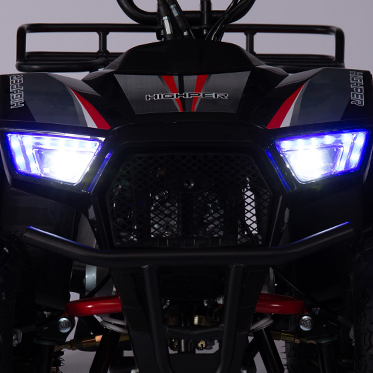

LED STRIPS INSTEAD OF A FEW SMALL BEADS,
WILL MAKE THE LIGHT MORE PENETRATING IN THE DARK.
14*4.60-6 GRIPPY TIRES, WHICH ARE BIGGER AND
ALSO HAVE DEEPER GRAIN PATTERNS THAN THE PREVIOUS SERIES

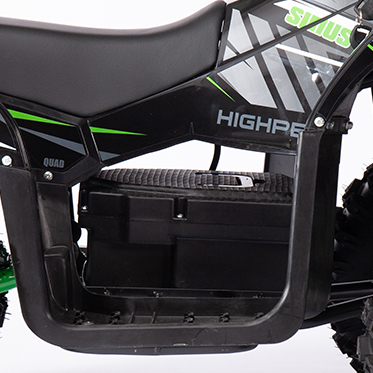

THE BATTERY CASE IS REMOVABLE,
WHICH CAN EITHER BE CHARGED DIRECTLY IN THE ATV
THROUGH THE CHARGING PORT OR TAKEN IT AWAY TO CHARGE IT SEPARATELY.

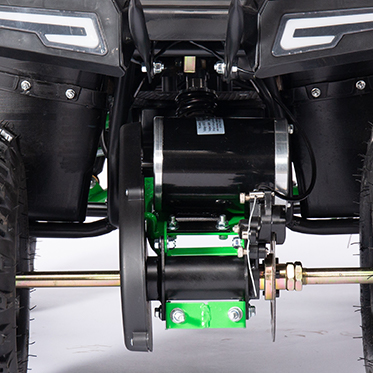

CHAIN TRANSMISSION MOTOR, THE SOUL OF THIS MODERN,AFFORDABLE, AND COST-EFFECTIVE FIRST CHOICE
|

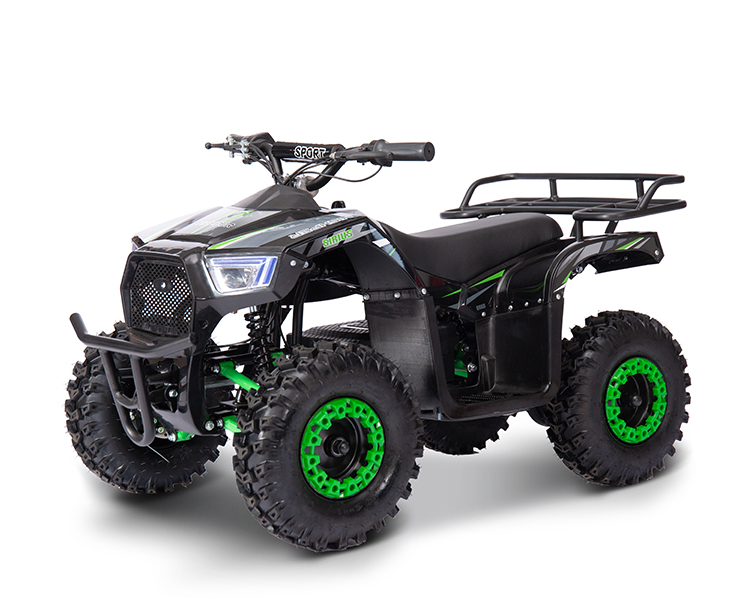

MODEL
|
ATV-13E(A)
|
FRONT & REAR WHEEL
|
14X4.60-6
|
|
MOTOR
|
BRUSHED MOTOR CHAIN DRIVE
|
WHEELBASE
|
730MM
|
|
MOTOR POWER
|
1000W 36V
|
SEAT HEIGHT
|
505MM
|
|
MAX SPEED
|
27KM/H
|
GROUND CLEARANCE
|
180MM
|
|
THREE SPEED KEY SWITCH
|
AVAILABLE
|
NET WEIGHT
|
57.50KG (36V12A)
|
|
BATTERY
|
36V12AH LEAD-ACID(48V12AH OPTIONAL)
|
GROSS WEIGHT
|
68KG (36V12A)
|
|
HEADLIGHT
|
LED
|
MAX LOADING
|
65KG
|
|
TRANSMISSION
|
CHAIN
|
PRODUCTS SIZE
|
1147x700x700MM
|
|
FRONT SHOCK
|
DOUBLE A SWING ARMS
|
OVERALL DIMENSIONS
|
1040x630x500MM
|
|
REAR SHOCK
|
MONO SHOCK
|
CONTAINER LOADING
|
80PCS/20FT, 203PCS/40HQ
|
|
FRONT BRAKE
|
MECHANICAL DISC BRAKE
|
PLASTIC COLOR
|
WHITE BLACK
|
|
REAR BRAKE
|
MECHANICAL DISC BRAKE
|
STICKER COLOR
|
RED GREEN BLUE ORANGE PINK
|
