Model
|
XP-17S-60V60Ah-A-EM
|
|
Casing
|
Metal
|
|
Cell
|
NCM Primastic 17S
|
|
Voltage
|
60V
|
|
Capacity
|
60Ah
|
|
Cycle Life
|
>1000
|
|
Max Working Voltage
|
72V
|
|
Voltage of Charger
|
71.4V
|
|
Charge Current
|
20A max
|
|
Discharge Current
|
40A
|
|
Discharge Current (Peak)
|
103A (500mS) 133A (1000mS)
|
|
Discharge Cut-Off Voltage
|
47.6V
|
|
Charge Temperature
|
0℃-45℃
|
|
Discharge Temperature
|
-10℃-45℃
|
|
Protection
|
Over Charge, Over Discharge, Over Current, Short Circuit, cell balancing, etc
|
|
Power Level Indicator
|
LCD
|
|
Protocol
|
C-14 3PIN male
|
|
Size:
|
Optional
|
|
Certificate
|
222*182*147mm
|
|
Package
|
22KG
|
|
Warranty
|
MSDS, UN38.3, Sea Transfer of Goods
|
|
|
UN Carton
|
|
|
12 months
|
-
Product Performance Description
1. Support customized electric motorcycle battery packs of various capacities and sheet metal shells
2. Built-in intelligent BMS, support App control, LCD power display
3.Safe and reliable NMC Battery Cells, no fire and no explosion, we have purchased product liability insurance for all battery packs
4.Easy to install and easy to remove

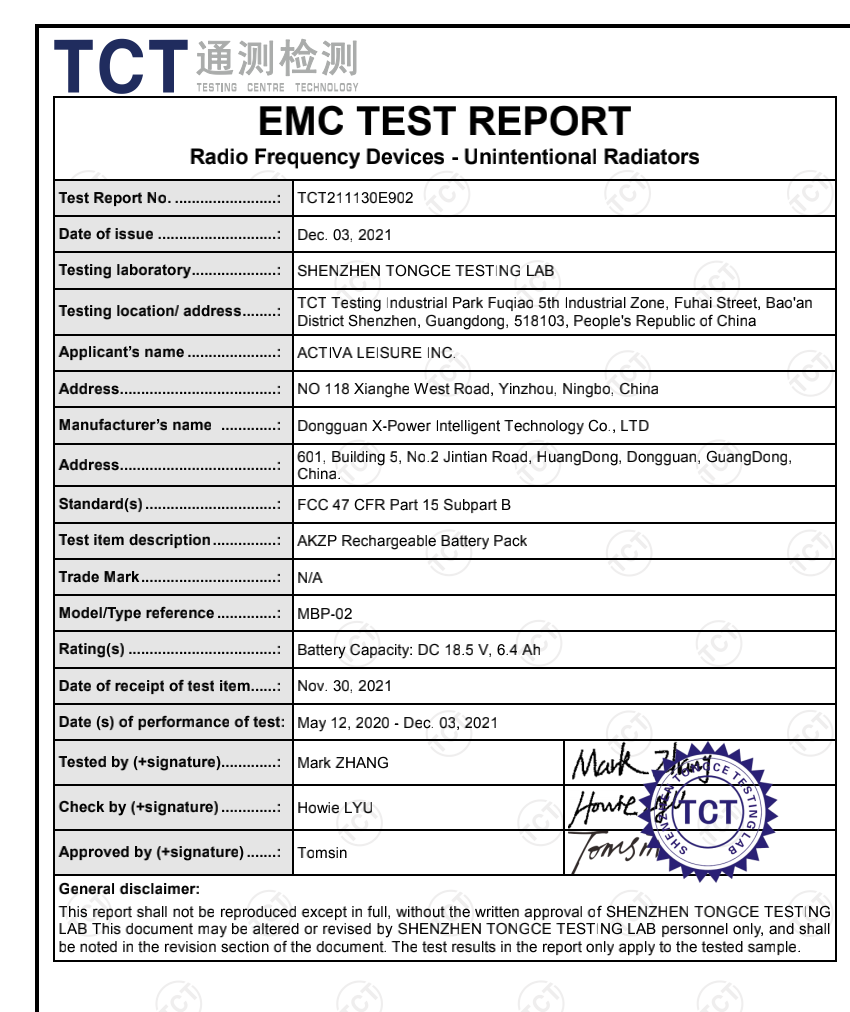

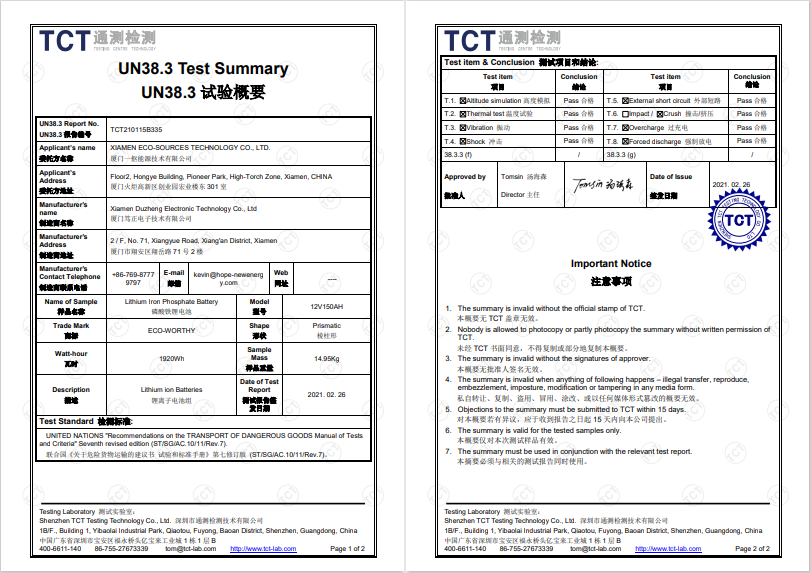

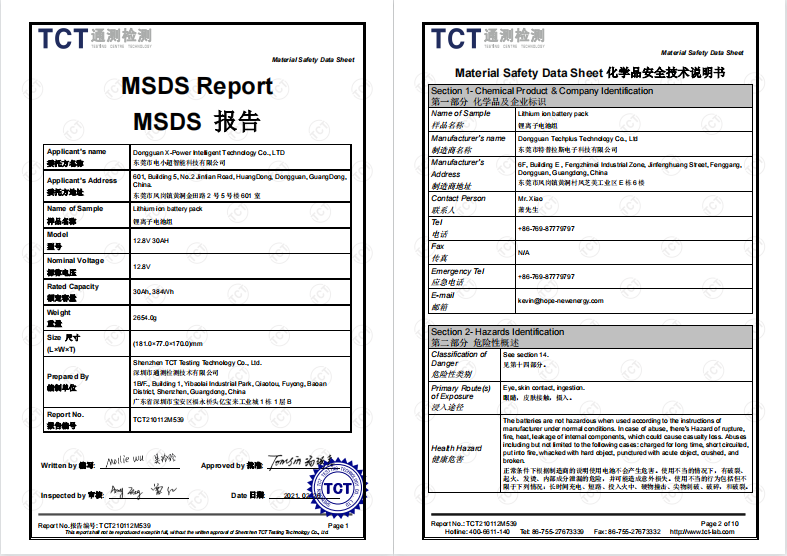

Certification
Details Images
Sheet metal paint waterproof,corrosion resistant shell, internal battery structure waterproof IP67, anti-collision and vibration test

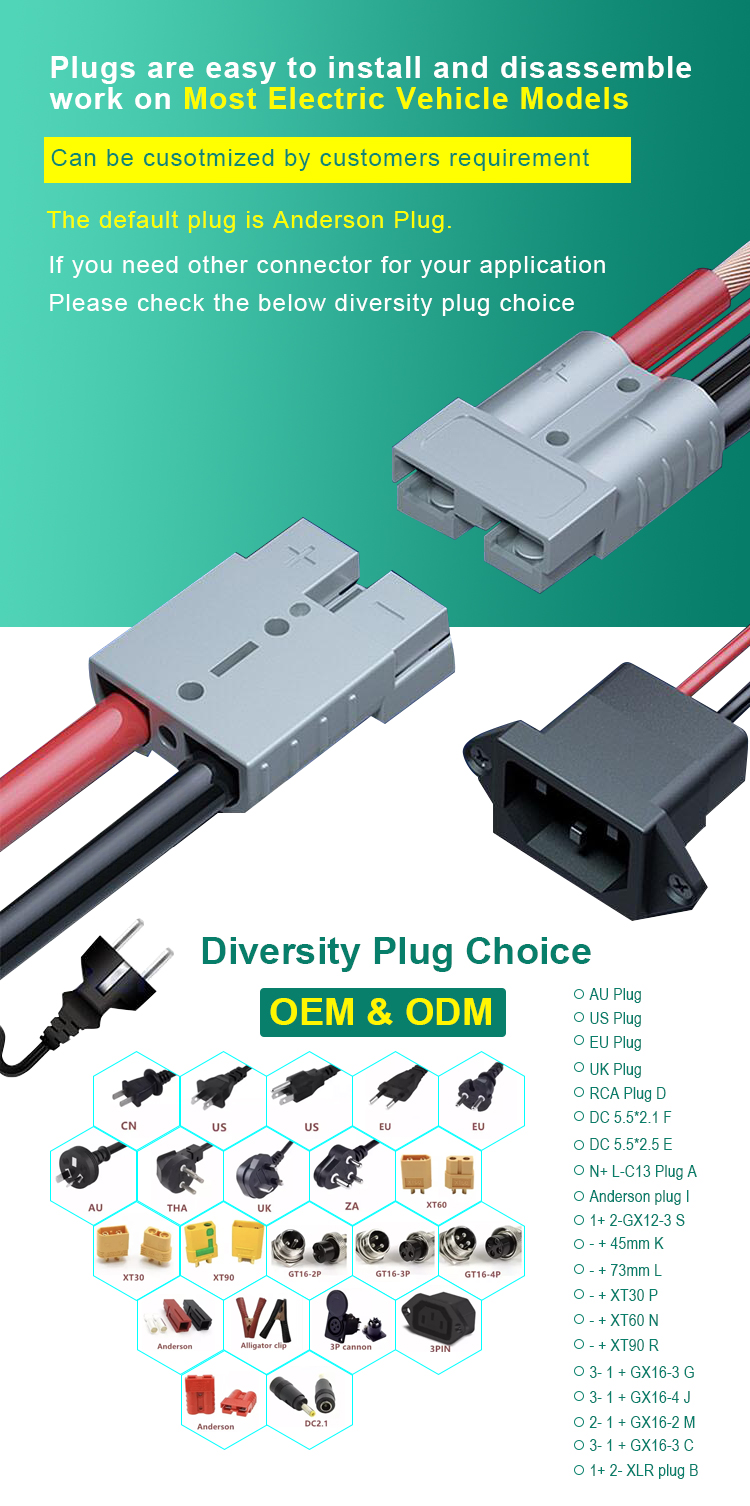

Anderson high current discharge connector plug, flame retardant low smoke halogen free cable

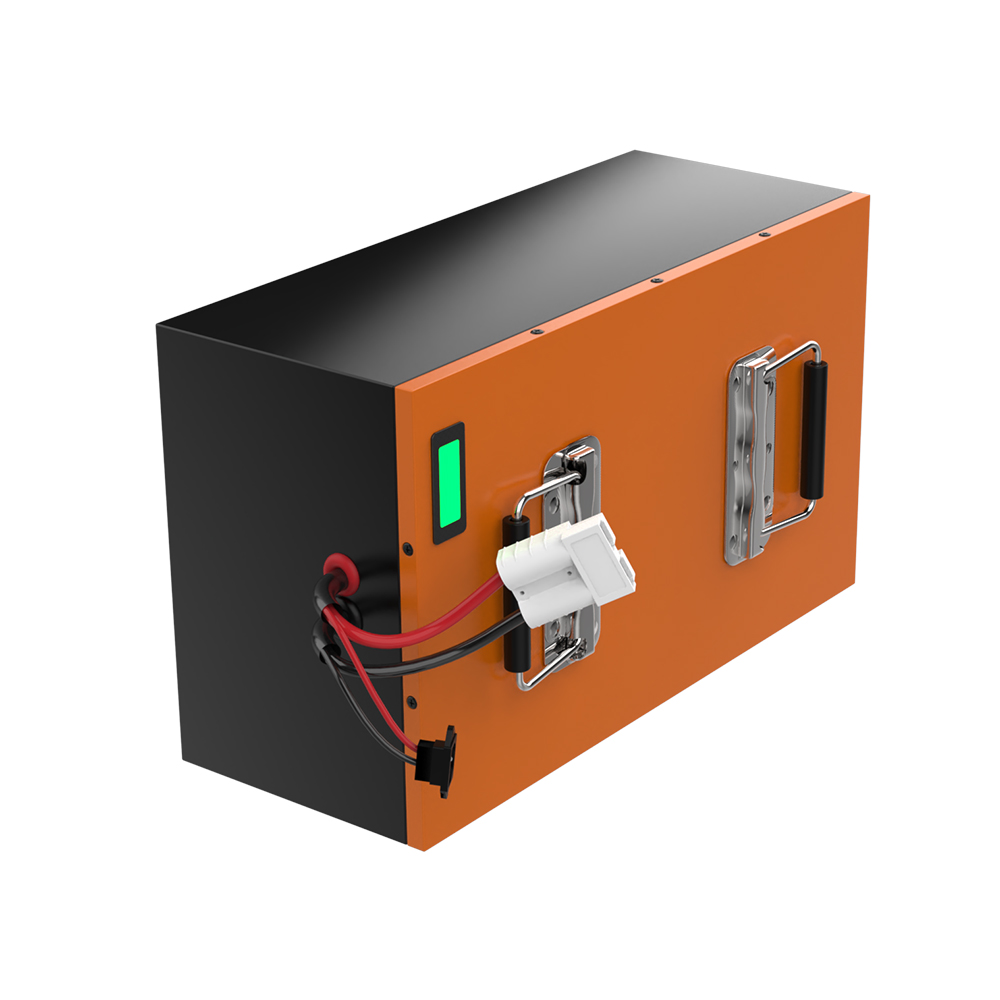

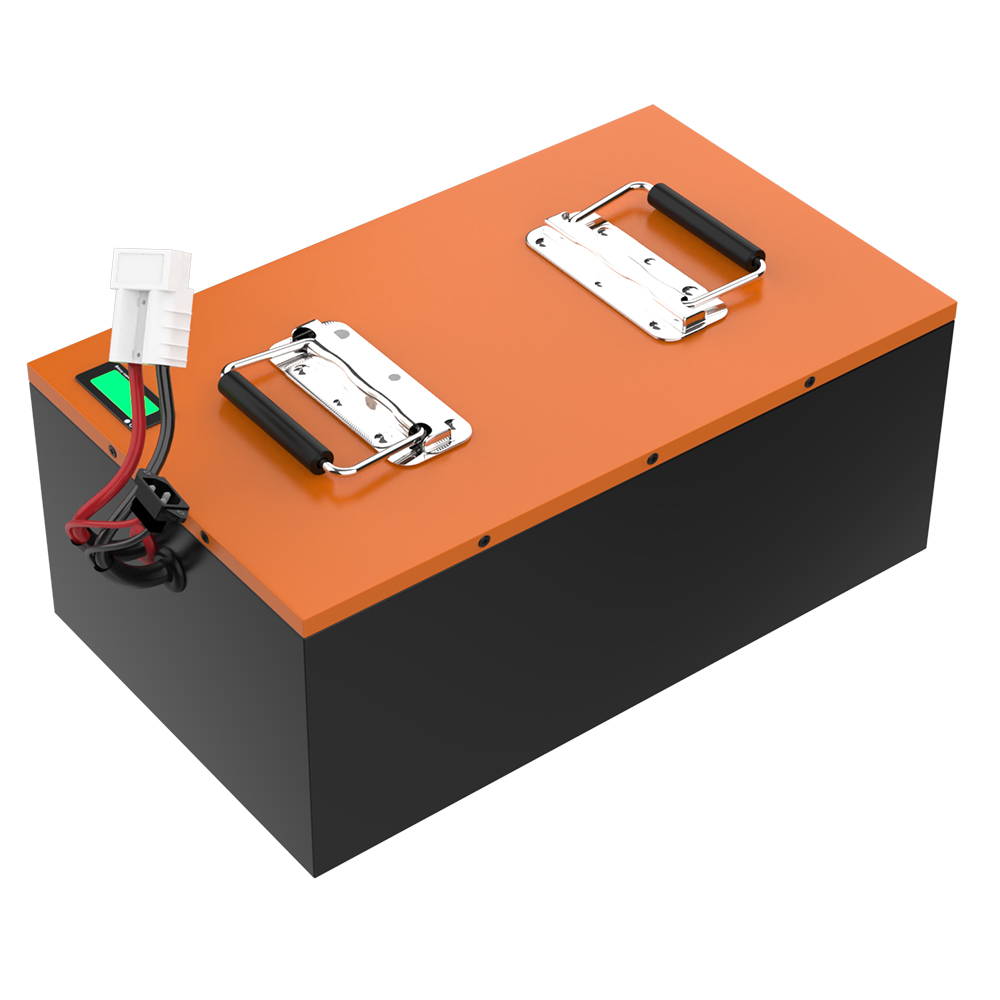

LCD power display, portable handle for easy handling
-->
