Equipped with cutting-edge safety features, including advanced traction control and a reinforced roll cage, our ATV UTV Buggy guarantees an invincible shield of protection while you push the boundaries of adventure. Rain or shine, rough or smooth, trust this trailblazing machine to conquer any obstacle in its path, leaving you with unforgettable memories etched into the fabric of your soul.
Overview
Essential details
| Type: | 5KW Motor |
|---|---|
| Transmission Type: | Automatic |
| Model Number: | KW500 |
| Fuel: | Electric |
| Description: | Adult Electric ATV |
| Fuel Type: | Electric |
| Final Drive: | 2WD |
| Size (L*W*H): | 2950x1430x1780mm |
| Net Weight: | 788KG |
| Motor: | 51V, AC, 5KW |
| Max forward speed: | 60km/h |
| Color: | Optional |
| Warranty: | 12 Months |
|
Motor
|
5KW, 51V, 82AMP 102HZ
|
|

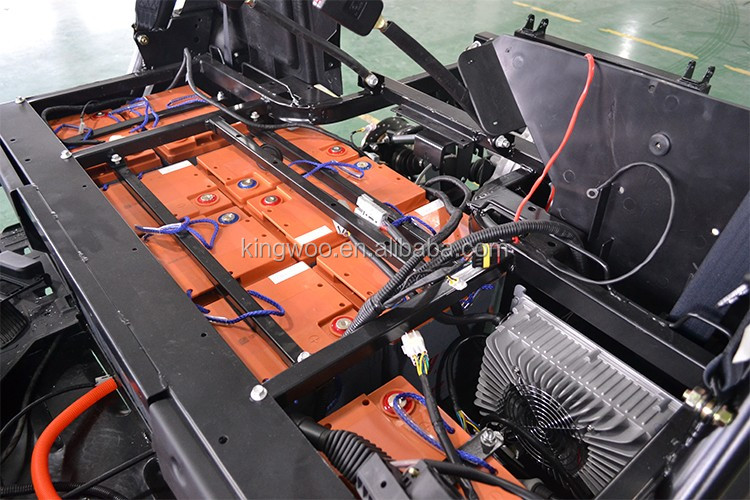

Battery
|
8V 150Ah X 9 lead-acid battery
|
|
Max Power
|
15kW
|
|
Max Torque
|
70N.M
|
|
Running on 1 full charge
|
80km
|
|
Cargo bed Dimensions(LXWXH)
|
1180×930×340mm
|
|
Overall Vehicle Size: (L x W x H)
|
2950x1375x1860mm
|
|
Max Speed ( km/h )
|
60
|
|
Detailed Specification
|
|
|

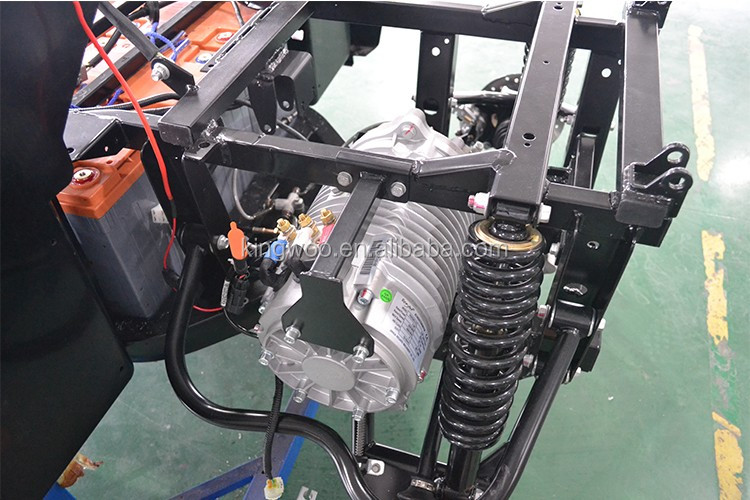

Motor
|

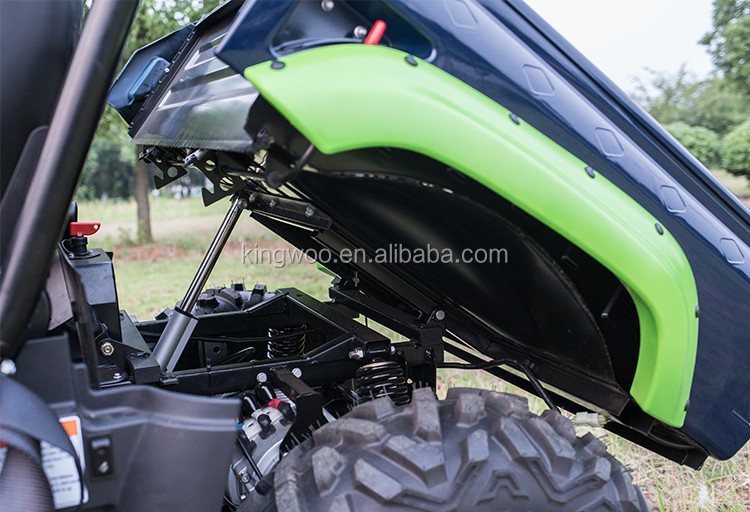

Suspension
|
|
Motor Type:5KW, 51V, 82AMP 102HZ
|
Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
|
|
Electricity Consumption of Sigle Charge: 10Kwh
|
Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
|
|
Brakes
|
Tires
|
|
Front/Rear Brakes: 4-Wheel Hydraulic Disc
|
Front Tires: 175/65 R14 82H
|
|
Parking Brakes: Hand-Actuated
|
Rear Tires: 175/65 R14 82H
|
|
Function/ Dimensions/ Capacities
|
|
|
Wheelbase: 1905mm
|
Drive System: RWD
|
|
Dry Weight: 788kgs
|
Battery: 8V, 150Ahx9
|
|
Overall Vehicle Size: (L x W x H)2950x1375x1860mm
|
Overall Vehicle Load Weight: 340kgs
|
|
Min Ground Clearance: 220mm
|
Hitch Towing Rating: 500kgs
|
|
Cargo bed Dimensions: (L x W x H)1180×930×340mm
|
Cargo bed Capacity: 185kgs
|

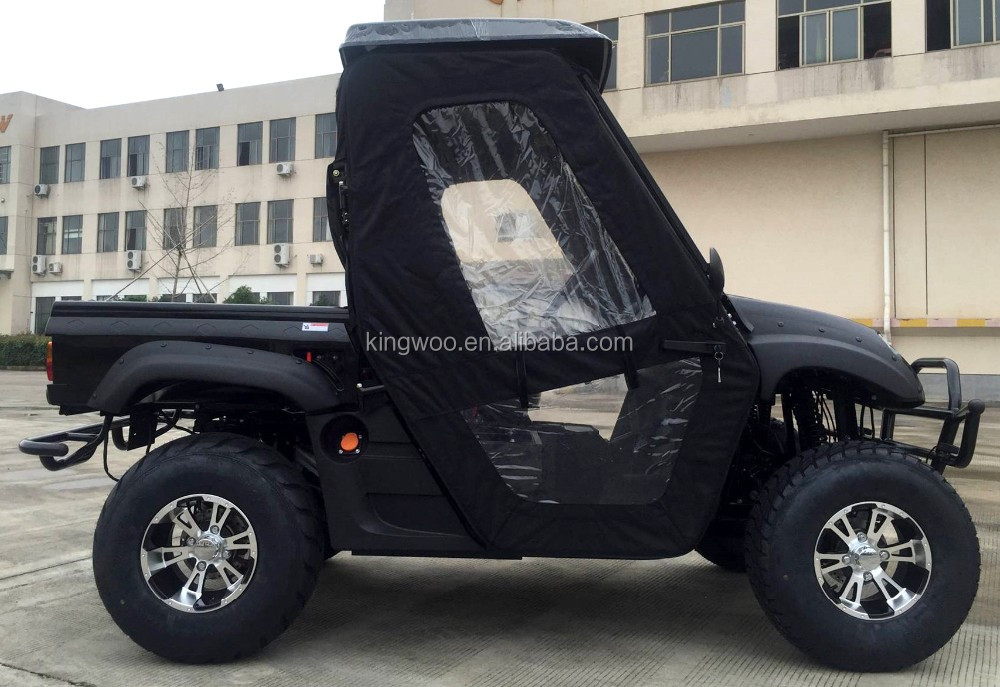

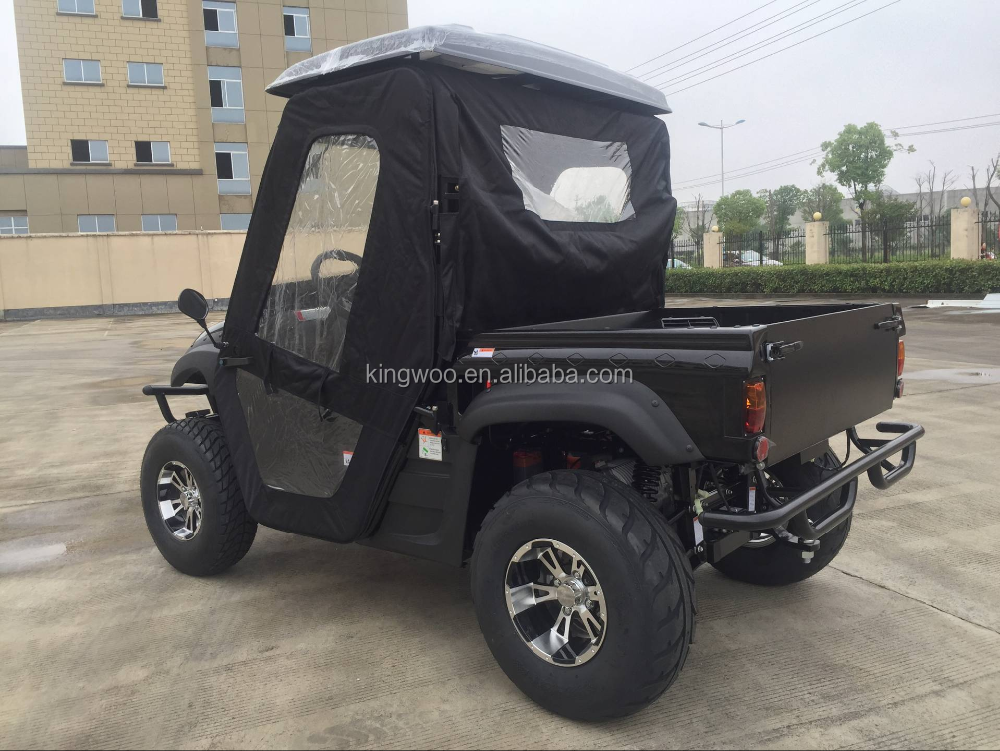

KW500 is one type of Electric Utility Vehicle ( Electric UTV ).
It is preferred by Euroepan customers because of pretty appearance and good performance.
It can be used in many fields such as Farm, Sport,Hunting, Logistics,ect.
This type of UTV is equipped with 5KW AC Motor and 72V Free-maintenance Battery.
Its max speed can reach 80-90 km/h.
Meanwhile,This UTV is also equipped with many optional spare parts for customers to choose.
-->
