Main Paraneter
|
Product Type
|

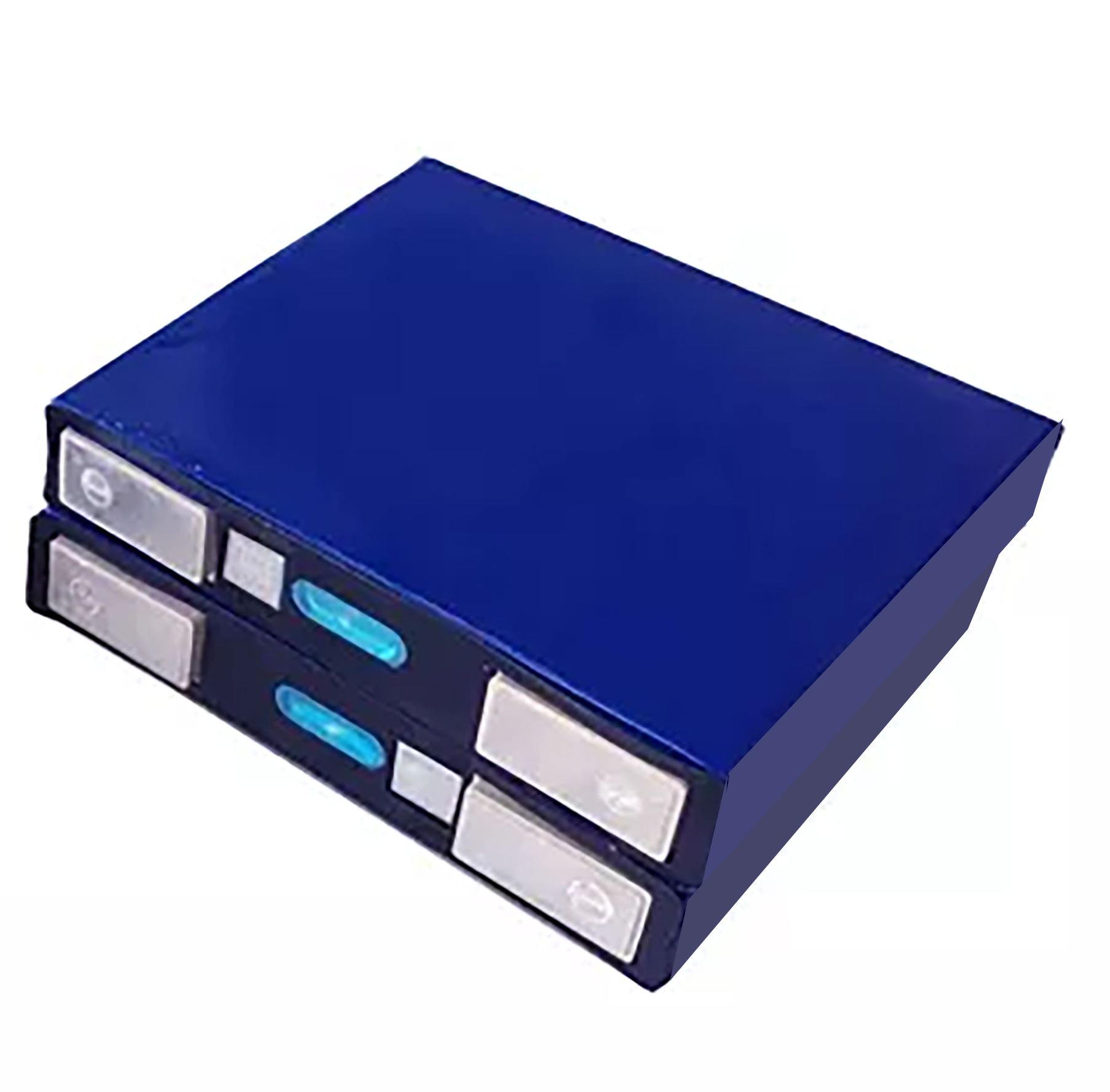

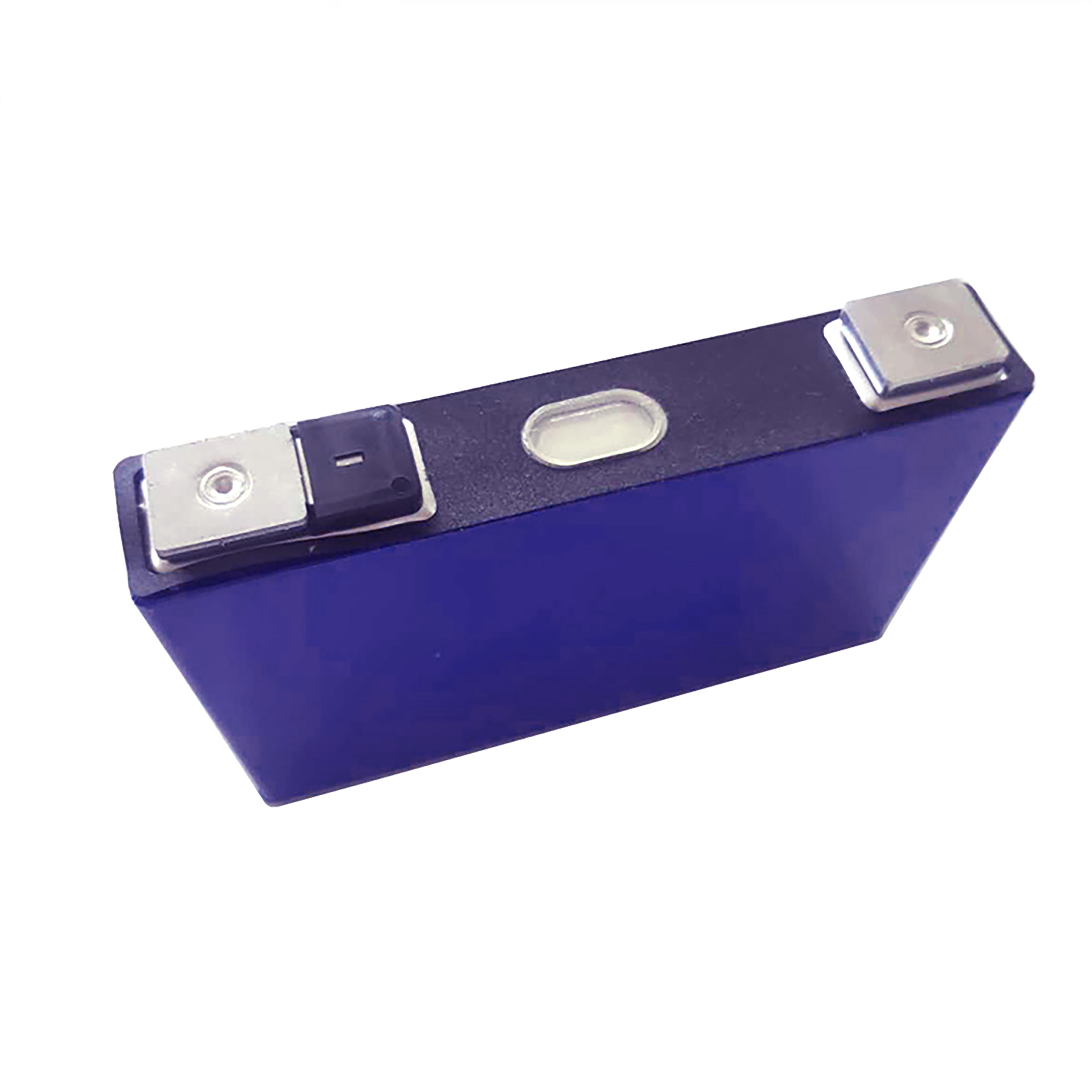

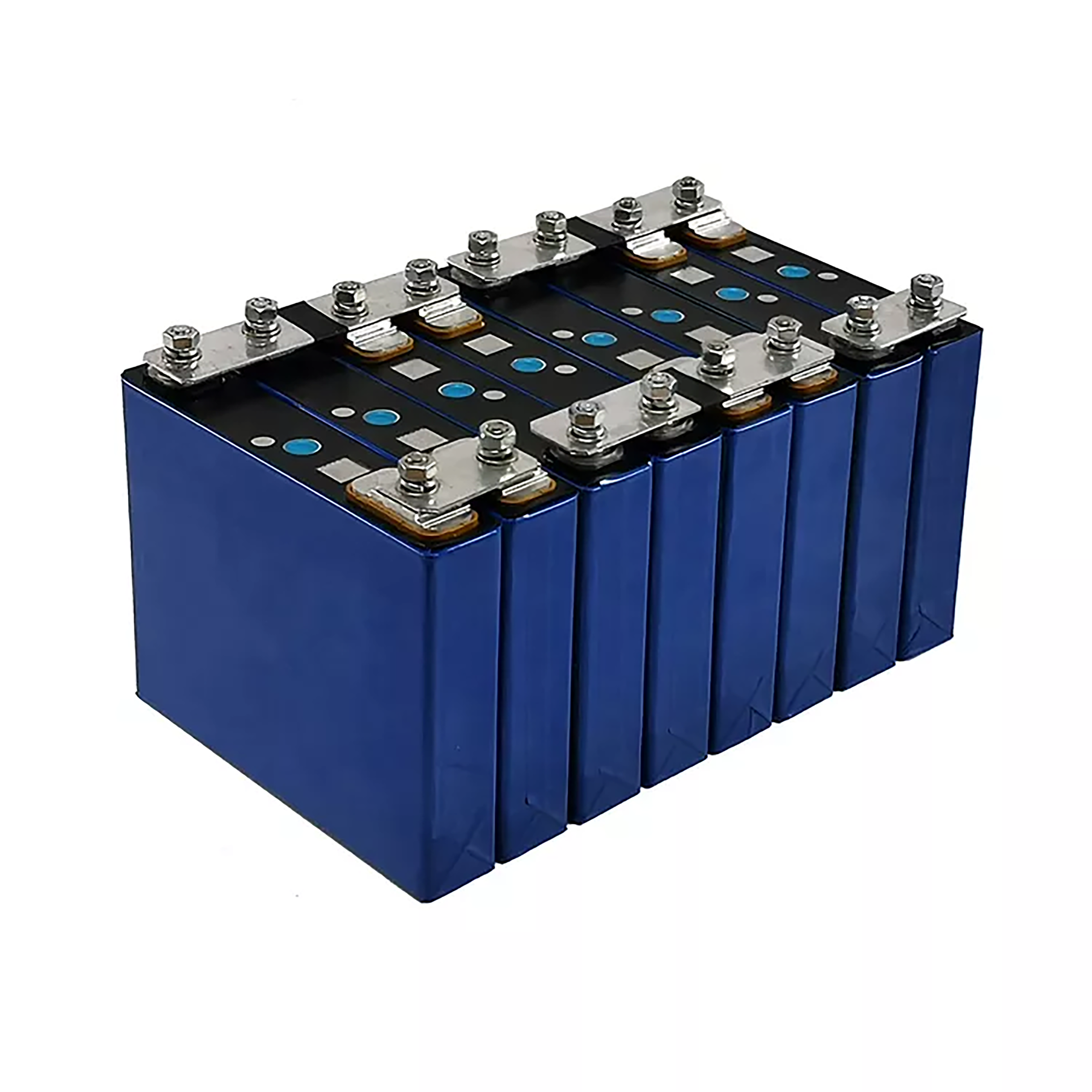

CATL Prismatic Lifepo4 Battery cell 3.7V 40Ah
|
|
Normal Voltage
|
3.7 V
|
|
|
Rate Capacity
|
40 Ah
|
|
|
Color
|
Blue
|
|
|
Charge voltage
|
4.2 V
|
|
|
Dicharge voltage
|
3 V
|
|
|
Life cycle
|
3000 times Life Cycle
|
|
|
Internal Resistance
|
≤ 0.7mΩ
|
|
|
Stander Charge current
|
0.2 C
|
|
|
Feature
|
Low IR,High discharge rate,Long lifecycle,High Capacity
|
|
|
Discharge rate
|
3C
|
|
|
Mechanical specifications
|

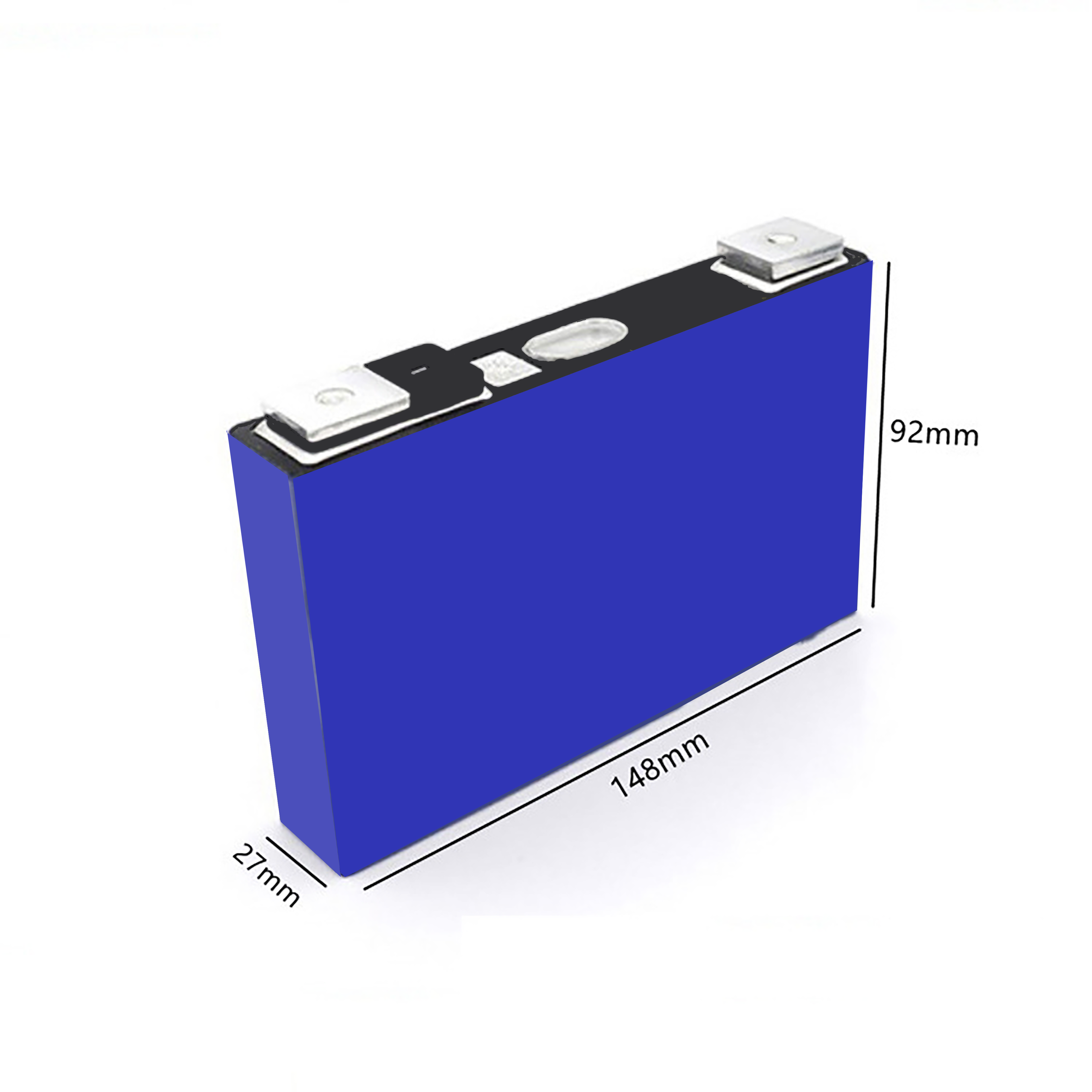

Dimensions
|
L148*H98*T27mm
|
|
Weight
|
0.82 kg
|
|
|
Others
|
Operating Temperature
|
Charging: -5 ℃ ~ 60℃/Discharging:‐30 ~ 60℃
|
|
Certification
|
CE/CB/UN38.3/MSDS
|
|
|
Storage Temperature
|
25℃
|
|
|
Package & Delivery
|
Package
|
Blister card, industrial package or customized...
|
|
Sample
|
Design the sample and offer it for text
|
|
|
Production time
|
3‐7 working days if have stock;7-10 working days if without stock
|
|
|
Package
|
Package
|
|
|
Application
|
Electric Folklifts,Electric Wheelchairs,Solar Energy Storage Systems,Golf Carts,Home Appliances,RV,Telecom Ess ,Boats etc.
|
|

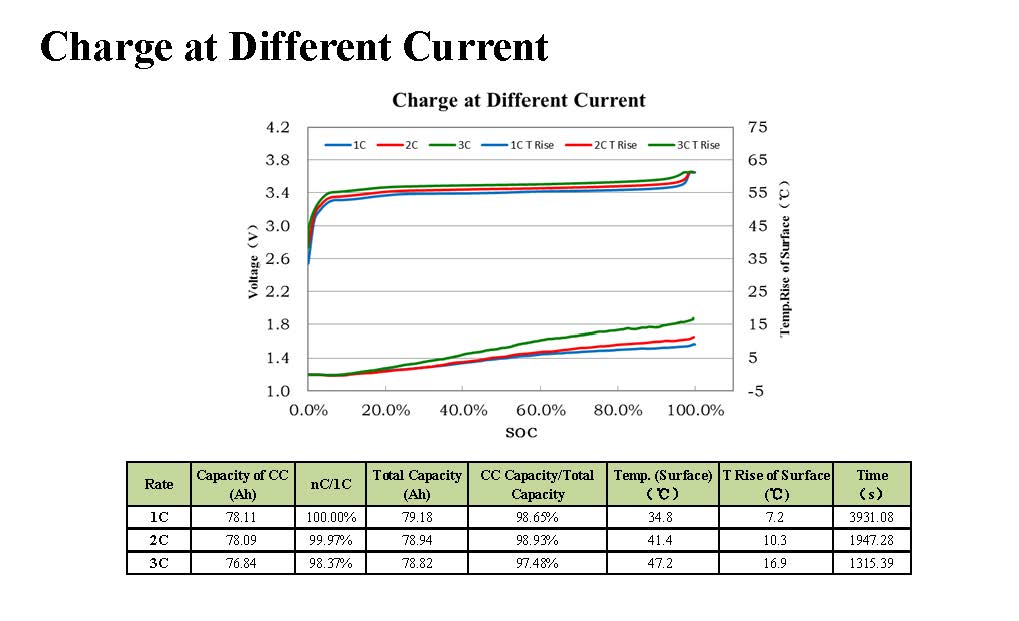

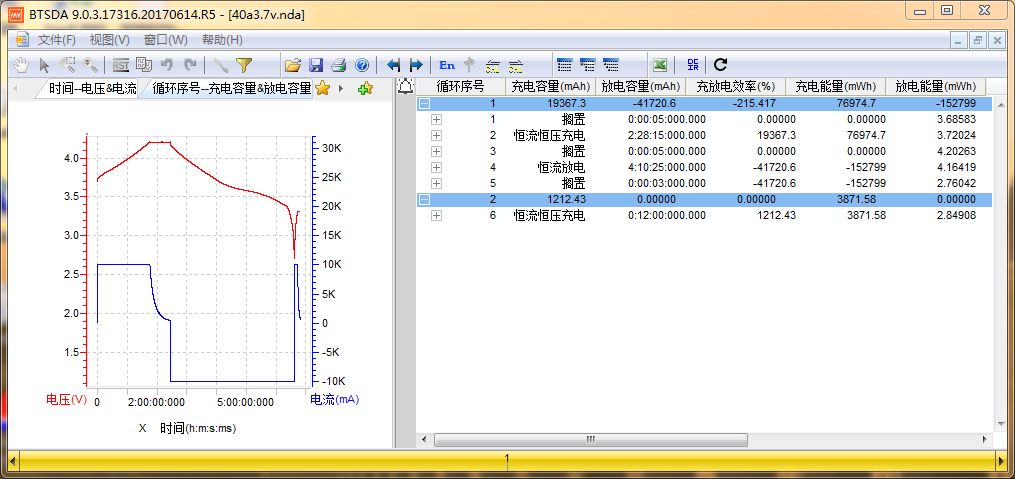

1C/1C Charge/Discharge
After 3500 times deep cycles Capacity >80%
-->
