With its sleek and compact design, our 60-Volt Lithium-Ion Battery 60Ah effortlessly integrates into your electric scooter, ensuring a seamless and hassle-free installation process. Engineered with your convenience in mind, this battery offers plug-and-play compatibility, instantly amplifying the performance of your scooter.
Products description
| Items | Values | |
|
Rated Capacity |
60.0Ah |
|
|
Rated Voltage |
60.0V |
|
|
Initial Internal Impedance |
<35 mΩ( Battery module) |
|
|
Max Charge Voltage |
73V |
|
|
Discharge Voltage |
50V |
|
|
Charge Current |
50A |
|
|
Max Charge Current |
60A |
|
|
Discharge Current |
60A |
|
|
Max Discharge Current |
120A |
|
|
Charge Method |
CC/CV |
|
|
Output and Input |
P+ / P- terminal |
|
|
Weight |
≦20±2kg |
|
|
Material Of box |
GI |
|
|

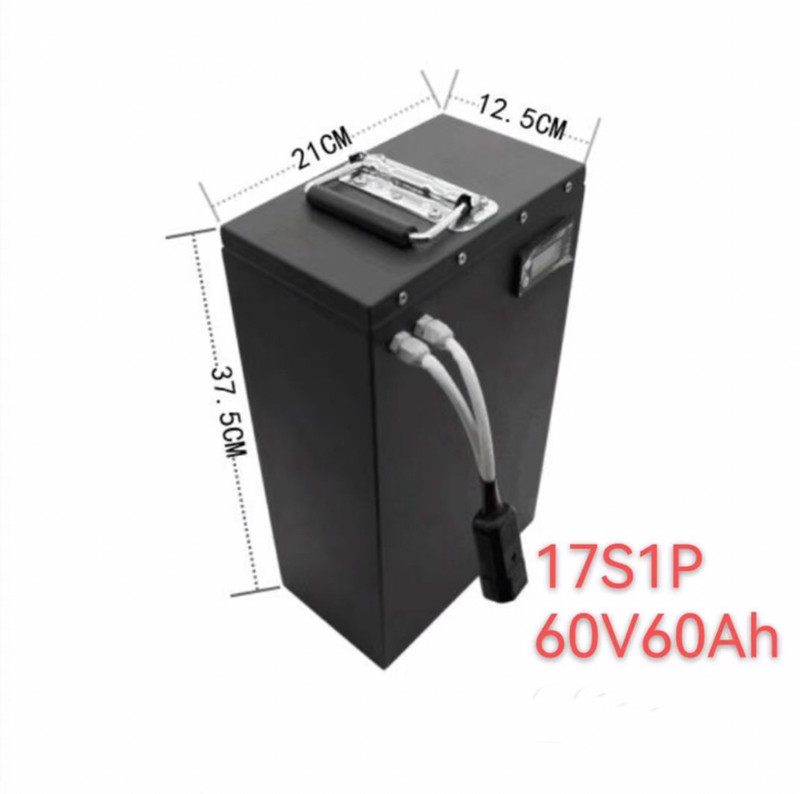

（L×W×H）Size（L×W×H） |
370*210*120±2mmmm(contain box，BMS，not |
|
|
Operating |
include handle and mounting brackets) |
|
|
Temperature |
Charge |
0℃～50℃ |
|
Discharge |
-20℃～60℃ |
|
|
Recommendation |
10~35℃ |
|
|
Storage |
-10℃～40℃ |
|
Product Features
The battery cell has large capacity and made of lamination process, has the characteristics of small internal resistance and high rate work current. Standardized, modular design, very easy system installation, maintenance and system capacity expansion and upgrade. All round alarm protection function(over charge, over discharge, short, over current, high temp, low temp, Reverse connection(option)). Have balance function, the BMS can keep balance of every cell and can assure the battery system have long life and steady operation.
Product Description
-->
