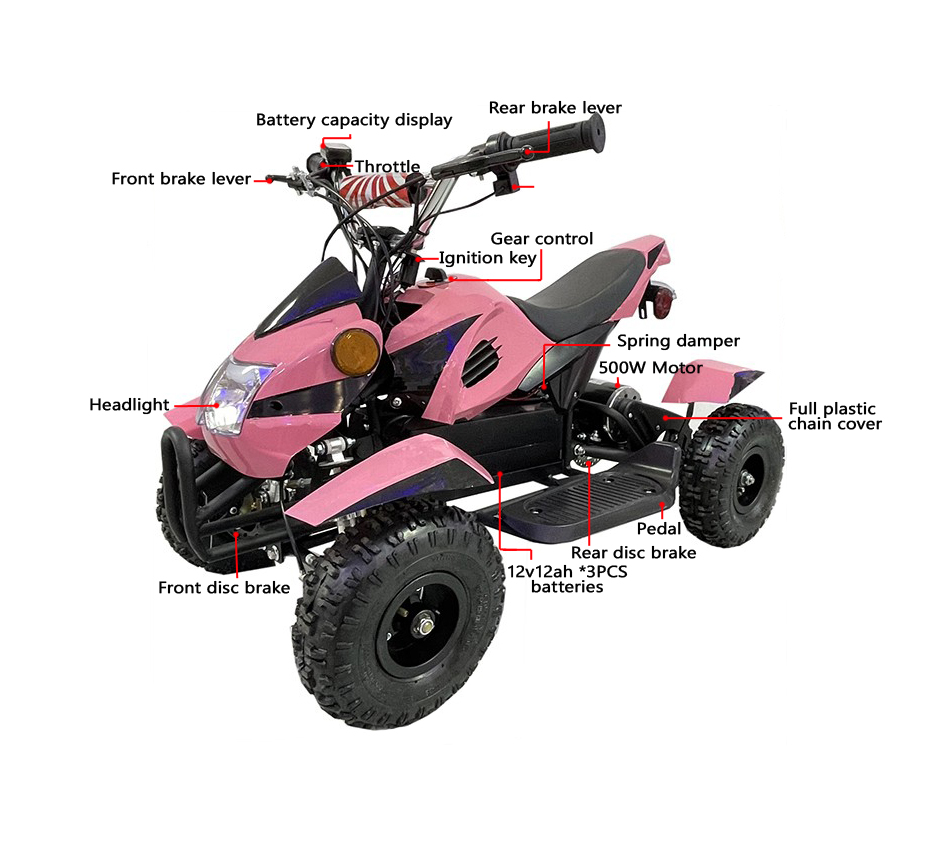

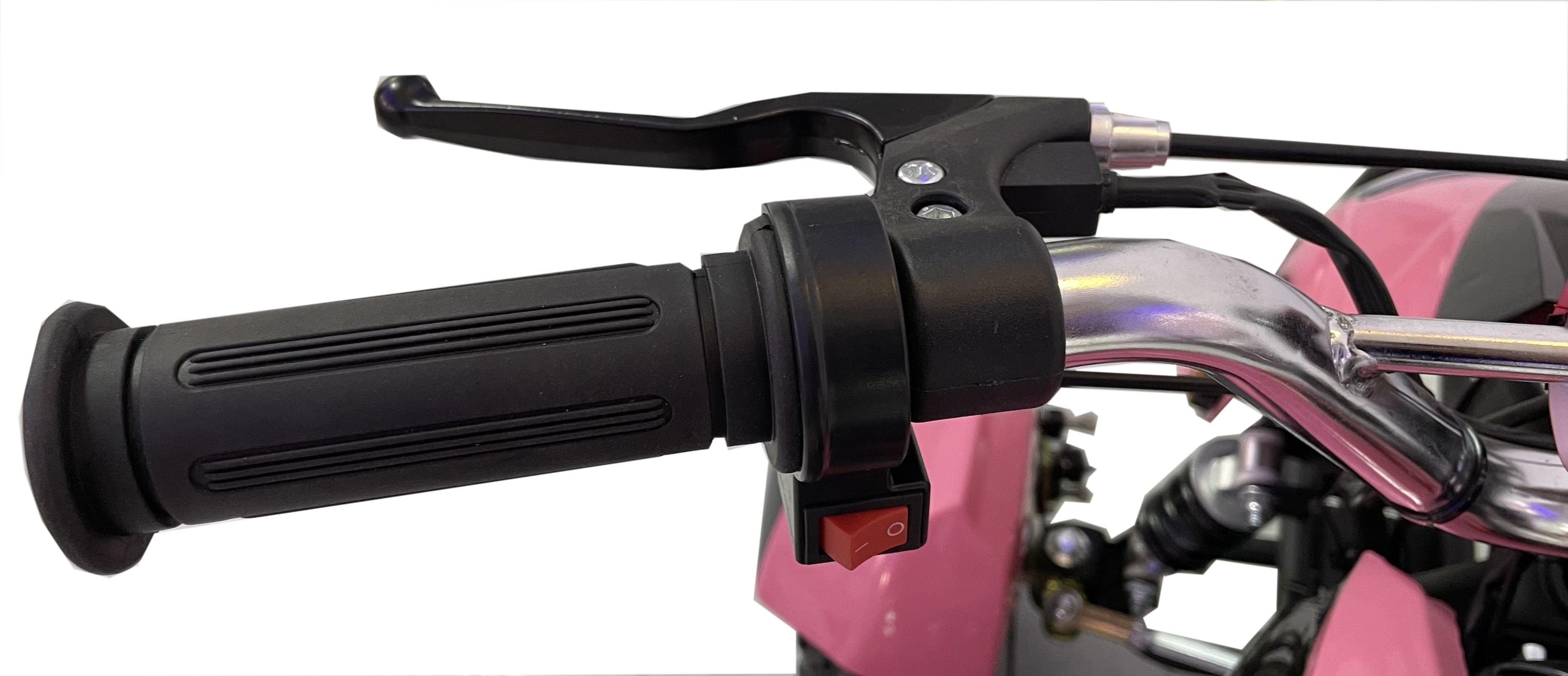

* Left brake lever
* Headlight switch
* Headlight switch

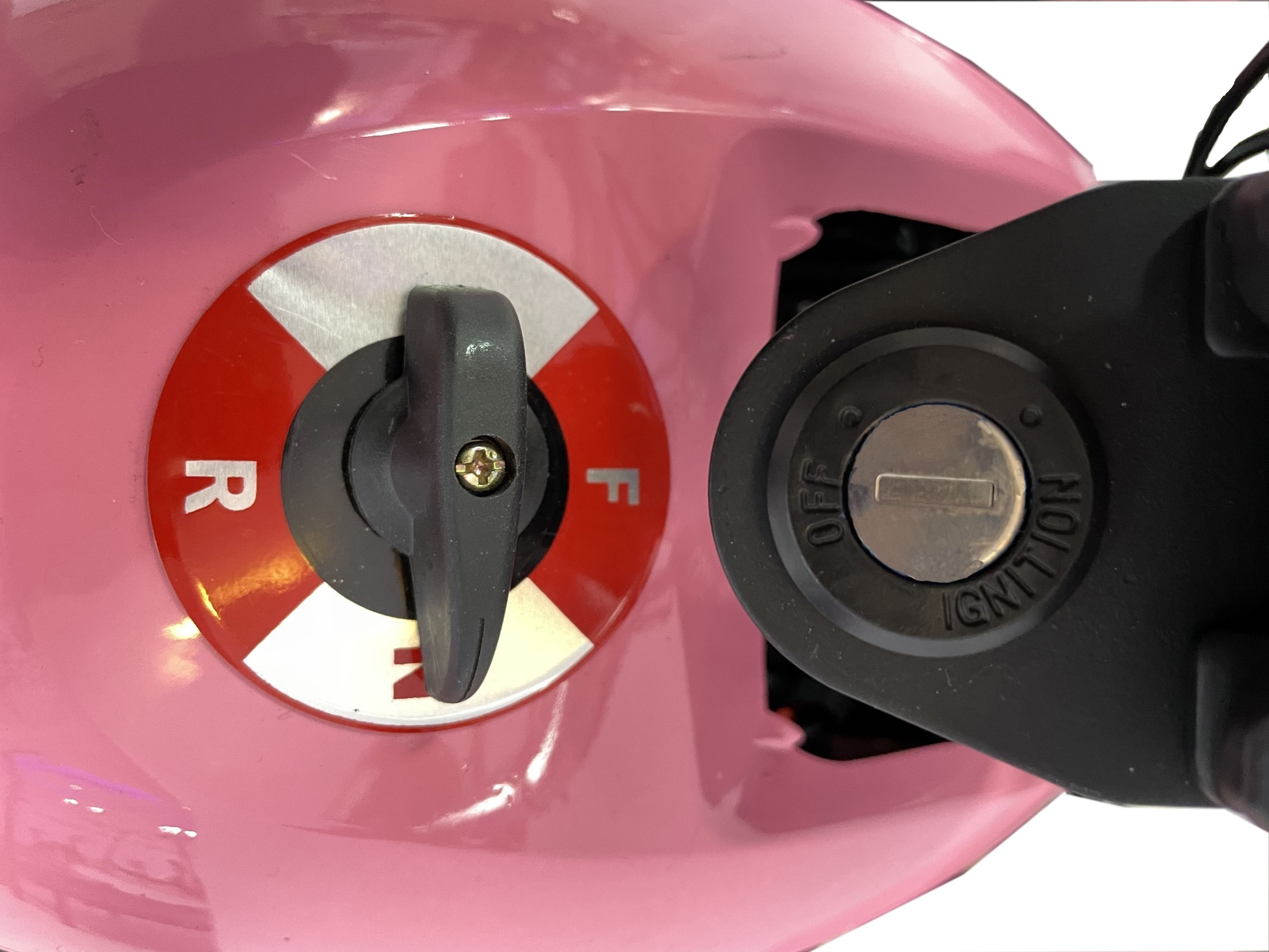

* F Gear -Forward(Speed1:7.5km/h，Speed2:15km/h，Speed3:24.5km/h）* N gear-Neutral
* R Gear-Reverse
* R Gear-Reverse

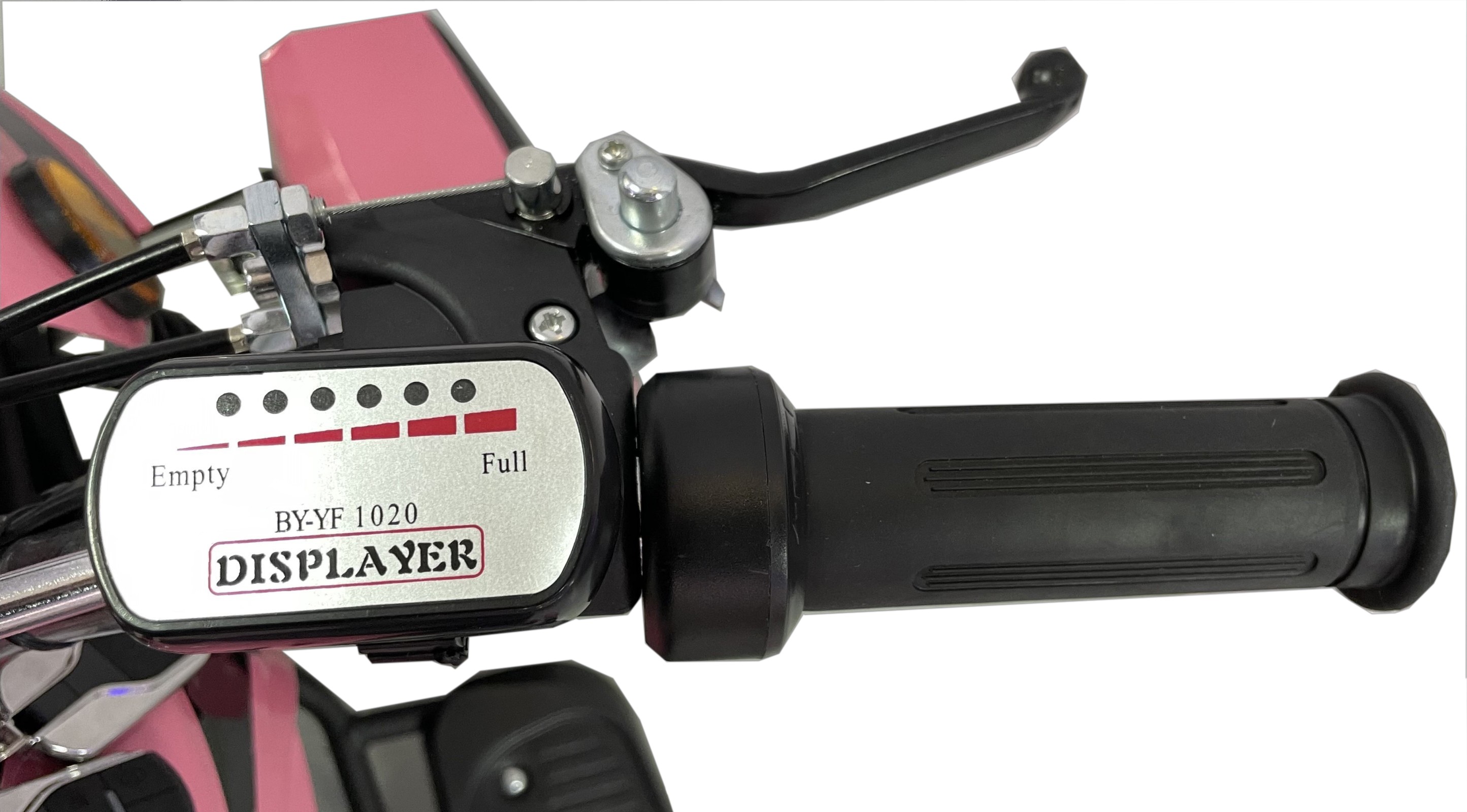

* Battery capacity display * Right brake lever
* Throttle
* Throttle

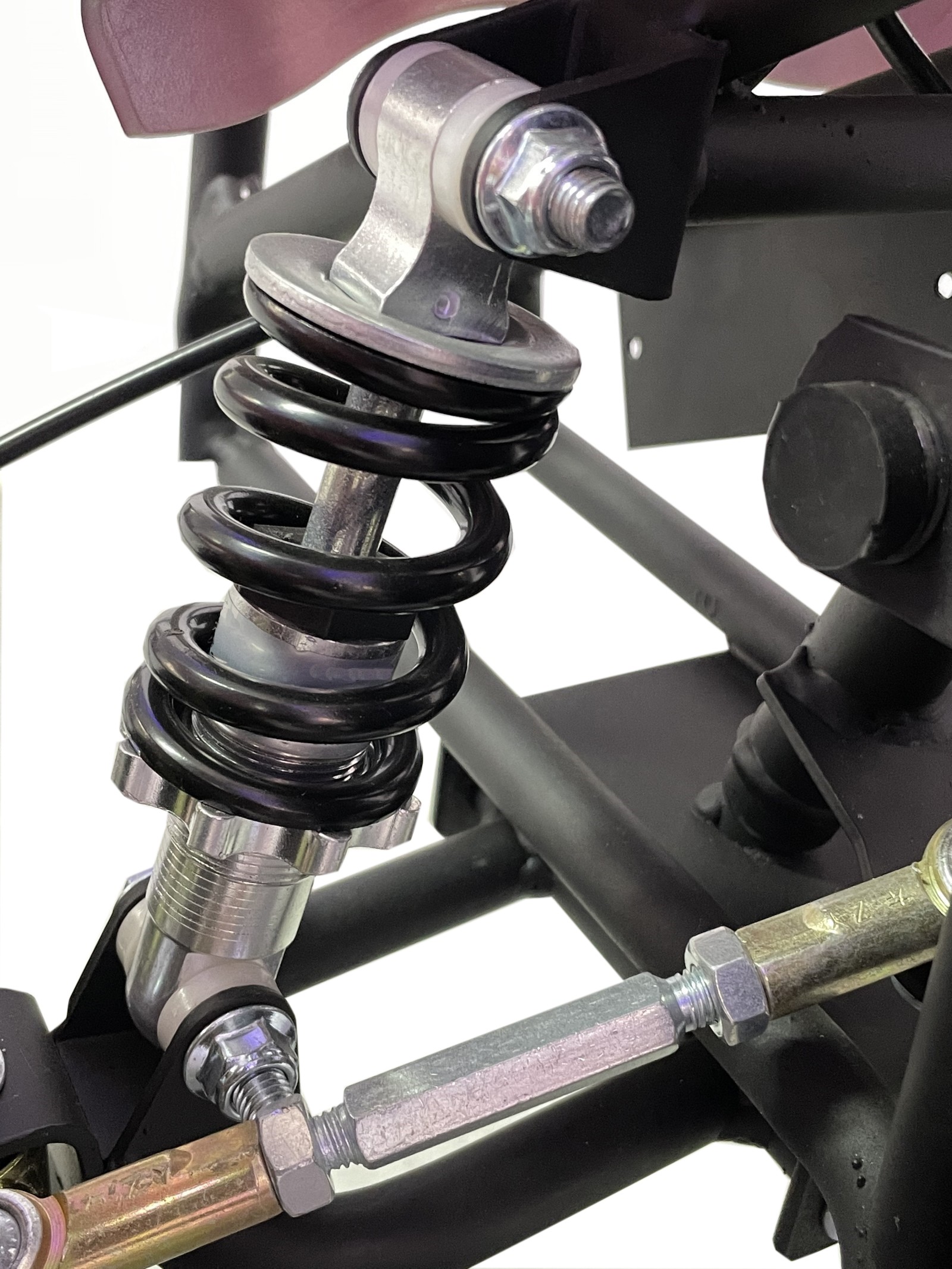

*Front spring damper
（Right&Left）
（Right&Left）

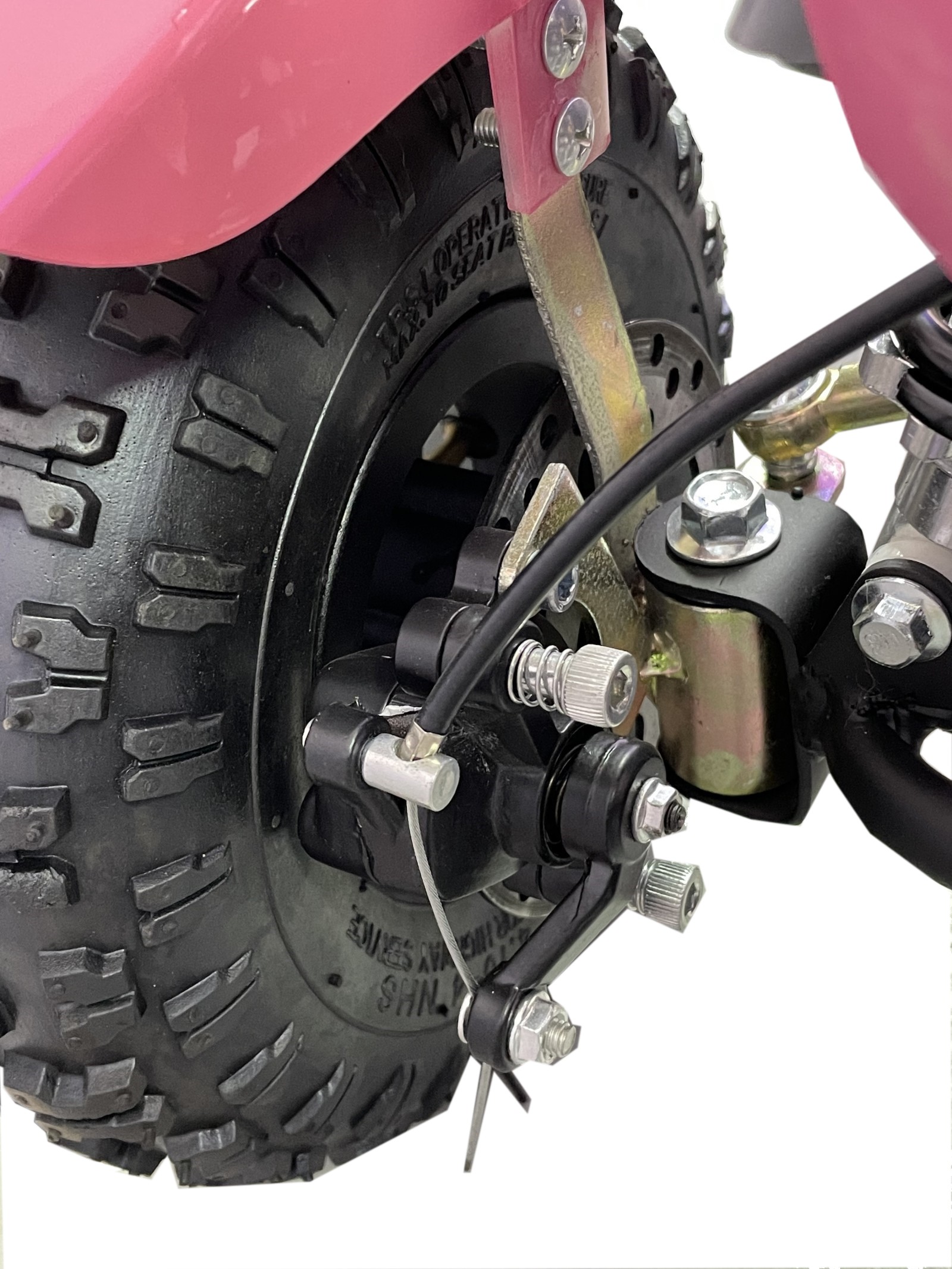

*Front disc brake

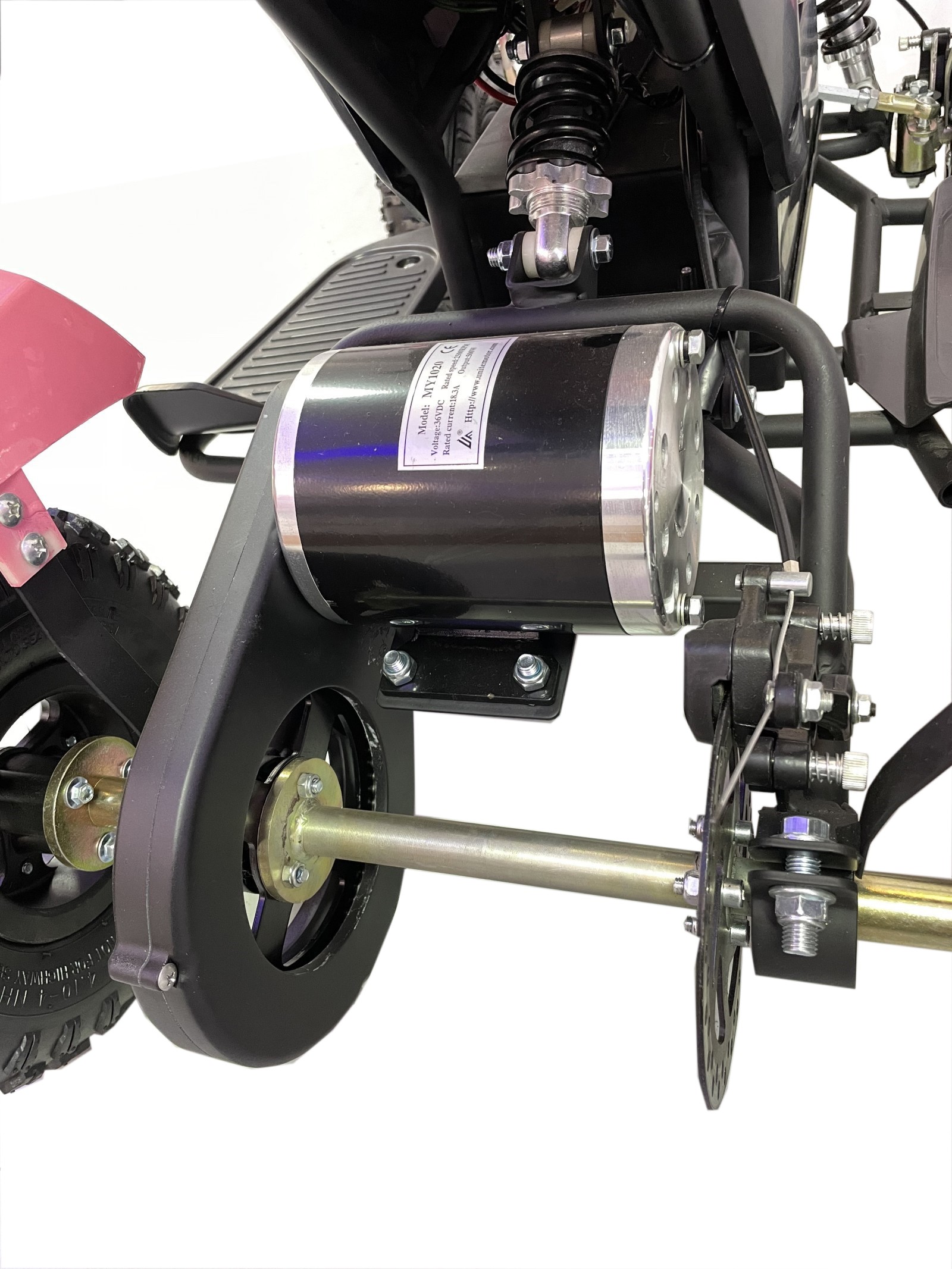

*500W motor
*Rear disc brake
*Full chain plastic cover
Rear spring damper
*Rear disc brake
*Full chain plastic cover
Rear spring damper
Specification
|
Motor
|
36V500W
|
|
Controller
|
36V500W
|
|
Chain wheel
|
25H11/68
|
|
Chain
|
25H86knots
|
|
Front wheel（with inner tire）
|
4.10-4
|
|
Rear wheel（with inner tire）
|
4.10-4
|
|
Battery
|
12v12ah *3PCS
|
|
Brake
|
Front Disc brake120#，Rear Disc Brake140#
|
|
Seat higher
|
430mm
|
|
Gear1/2/3+Reverse+speed
|
Gear1-7.5km/h，Gear2-15km/h，Gear3-24.5km/h
|
|
Runing time
|
55mins
|
|
Loading weight
|
54kgs
|
|
N.W
|
43kgs
|
|
G.W
|
60kgs
|
|
Alex distance
|
700mm
|
|
Front wheel distance
|
465mm
|
|
Rear wheel distance
|
467mm
|
|
Product size
|
1010*580*670mm
|
|
Package size
|
1100*650*640mm
|
|
Package style
|
whole vehicle+iron frame +carton
|
|
Color available
|
Pink，Green，Blue，Orange，Red，Yellow
|
|
Remote
|
NO，optional
|
|
Battery capacity display
|
Yes
|
|
HORN Radio
|
Yes
|
|
Full chain cover
|
Yes
|
|
Rear reflector
|
Yes
|
|
Container capacity
|
20GP:54PCS 40HQ:144PCS
|
-->
