Removable Lithium Battery 21700 10S2P 36V 10Ah Lithium Ion Battery Pack for Electric Scooter
|
||
|
Mechanical
|
Cell & Method
|
Lithium 21700 Battery Pack
|
|

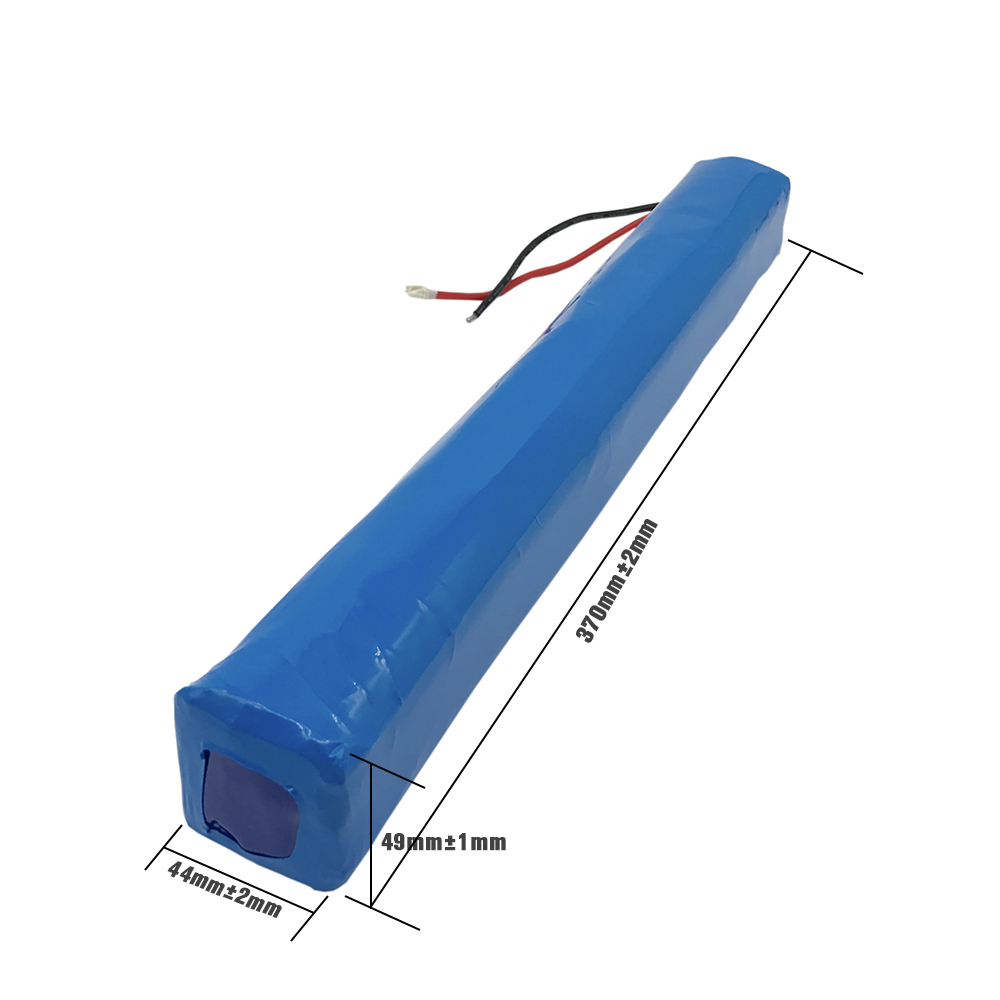

Dimension(L*W*H)
|
44*49*370 mm
|
|
|
Weight
|
2KG
|
|
|
Electrical Characteristics
|
Rated Capacity
|
10Ah（0.2C, 25℃）
|
|
Min Capacity
|
10Ah
|
|
|
High Rate Discharge Capacity
|
> 90% Rated Capacity
|
|
|
Discharge Capacity @ -20ºC(-4ºF)
|
> 70% Rated Capacity
|
|
|
Norminal Voltage
|
36V
|
|
|
Wattage
|
360watts
|
|
|
Internal Impedance(@ 1000Hz.)
|
≤20 mΩ
|
|
|
Cycle Life
|
>700 Cycles @ 1C 85% DOD
|
|
|
Months Self Discharge
|
≤ 5% @ 25ºC(77ºF)
|
|
|
Efficiency of Charge
|
100% @ 1/3C
|
|
|
Efficiency of Disharge
|
95% @1C
|
|
|
Standard Charge
|
Charging Voltage
|
29.4V
|
|
Charge Current
|
0.5C
|
|
|
Max Charge Current
|
1C
|
|
|
Standard Discharge
|
Standard discharge Current
|
1C
|
|
Max Discharge Current
|
3C
|
|
|
Discharge Cut-off Voltage
|
27.5V
|
|
|
Environmental
|
Charge Temperature
|
0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity
|
|
Discharge Temperature
|
-20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
|
|
|
Storage Temperature
|
≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
|
|
|
≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20%Relative Humidity
|
||

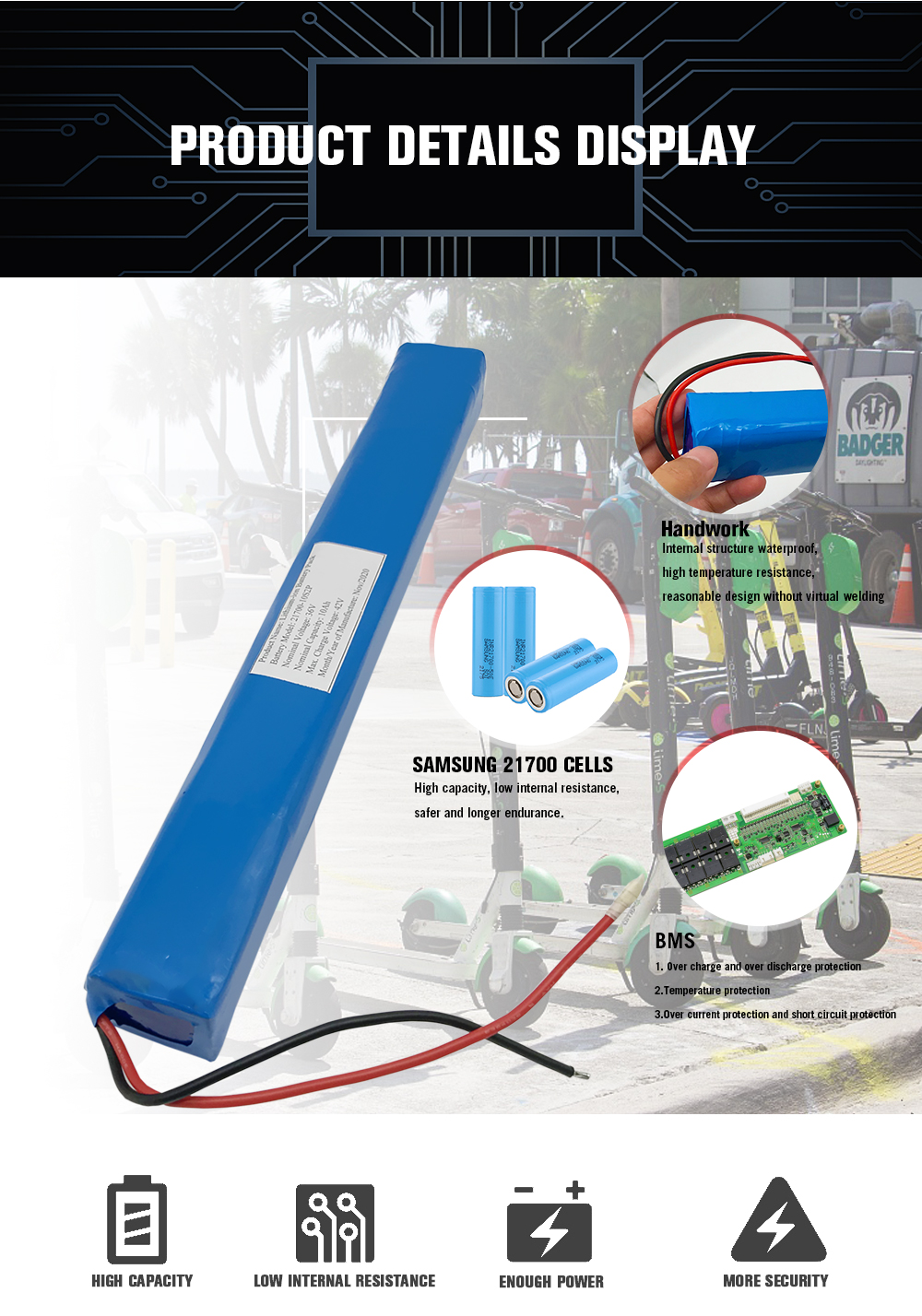

Details Images

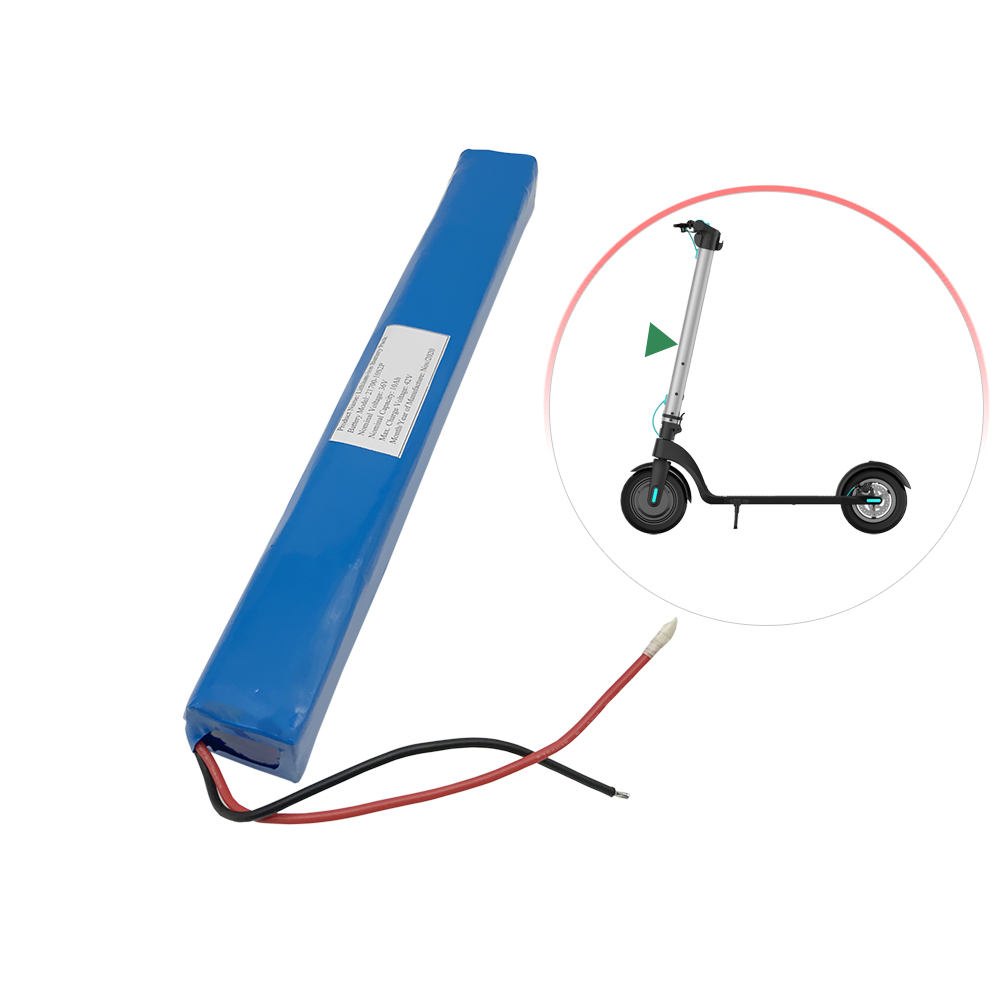

Application
Recommend Products
|
Model
|
Voltage/Capacity
|
Dimension
|
Weight/power
|
|
48V270A-15S2P
|
48v 270Ah
|
600×440×190mm
|
12.96 Kwh
|
|
48V100A-16S1P
|
48v 100Ah
|
460* 483* 178mm
|
45kg
|
|
48V200A-16S2P
|
48v 200Ah
|
580*483*220mm
|
90kg
|
|
24V200A-8S2P
|
24v 200Ah
|
460*483*220mm
|
45kg
|
|
24V100A-8S1P
|
24v 100Ah
|
308* 483* 222mm
|
25kg
|
|
12V 5Ah 4S1P
|
12v 5Ah
|
150*65*94mm
|
0.8kg
|
|
12V 10Ah 4S2P
|
12v 10Ah
|
150*65*94mm
|
1.4kg
|
|
12V 12Ah 4S2P
|
12v 12Ah
|
150*65*94mm
|
1.4kg
|
|
12V 18Ah 4S3P
|
12v 18Ah
|
150 * 95 * 95mm
|
2.1kg
|
|
12V 100Ah 4S1P
|
12v 100Ah
|
260*165*220mm
|
10kg
|
|
72V220A-23S2P
|
72v 220Ah
|
700×410×230mm
|
15.84Kwh
|
