Description
Prepare for mind-blowing acceleration that will send shivers down your spine as you effortlessly conquer any terrain with sheer power and precision. With an incredible 3000W output, this beast of a motor delivers unmatched performance, propelling you forward at breathtaking speeds, and leaving a trail of excitement in your wake.
DescriptionÂ

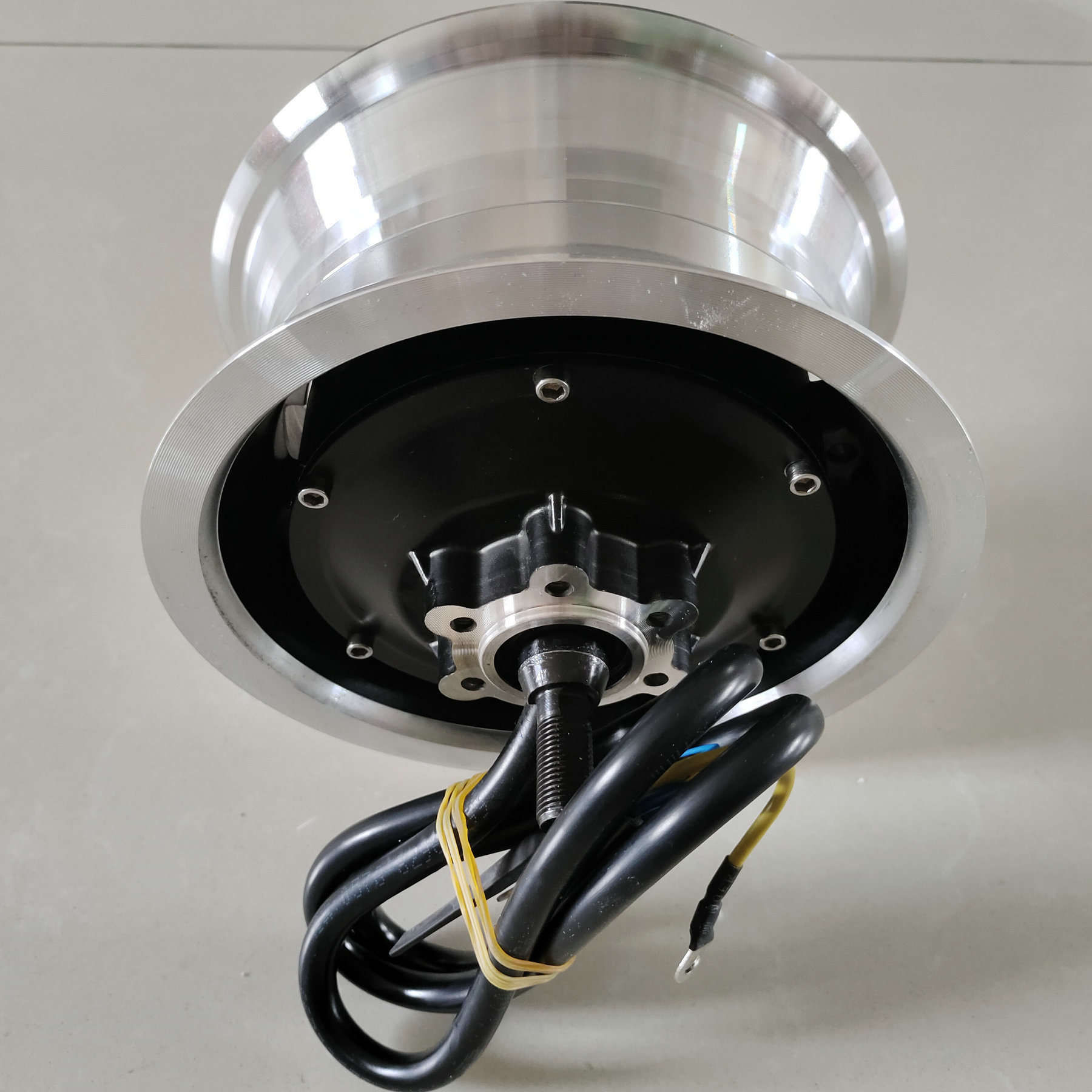

11inch 60v3000w/45H 1600w Motor BRUSHLESS GEARLESS HUB for Electric Scooter Tricycle UTV ATV BUGGY CONVERSION PART
11inch motor with hallsensor
brushless gearless motor
price is for one motor
if you want a scooter of dual motor please order 2 motors
if single driven, can order only one .
11inch motor with hallsensor
brushless gearless motor
price is for one motor
if you want a scooter of dual motor please order 2 motors
if single driven, can order only one .
it need a disc brake 140mm 6holes
price include an off road tyre 11inch 90/65-6.5
if u want more tyre as standby use, order the tyre here
if u want more tyre as standby use, order the tyre here
need controller 35A /40A max 45a
order controller here
the motor usually has two model
with magnetic height 45H 1600W
or 60H 3000W (marked 3000w
real power 2600w
max 2200rpm

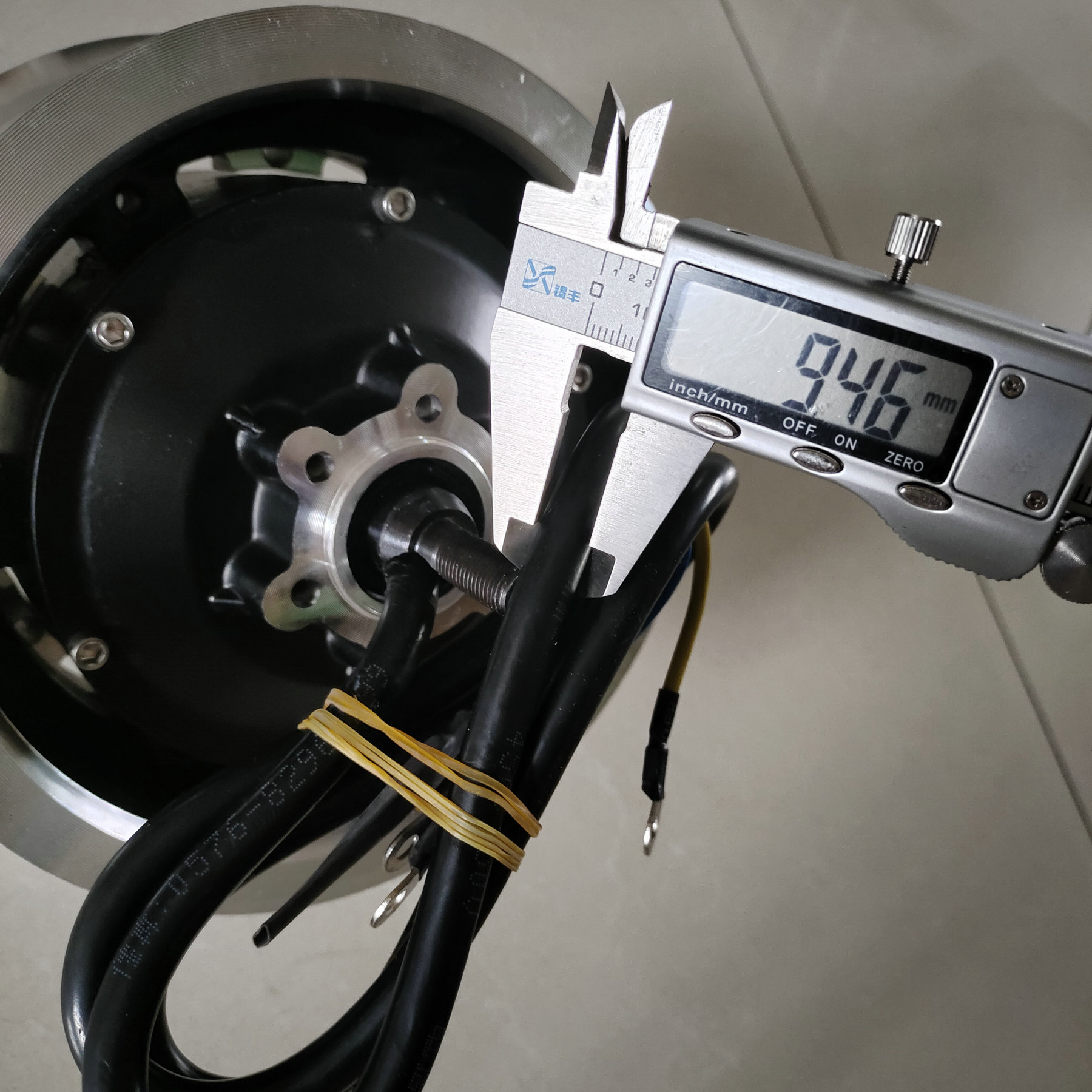

fork opening 150mm -145mm
axle length 210mm
need tyre 90/65-6.5)
rim size 85mm
size :outside diameter include tyre 280mm . tyre width 90/100
net weight 7kg
for 60v3000w revolution is 2400rpmif u have old motor like this bellow, u can all order from here our store, the new motor to replace it,
such as old motor 1: 60V 1600W Use for FLJ T113 scooter; Motor with 45mm Magnets ( use 25A or 37A controller)
sample
order controller here
the motor usually has two model
with magnetic height 45H 1600W
or 60H 3000W (marked 3000w
real power 2600w
max 2200rpm
fork opening 150mm -145mm

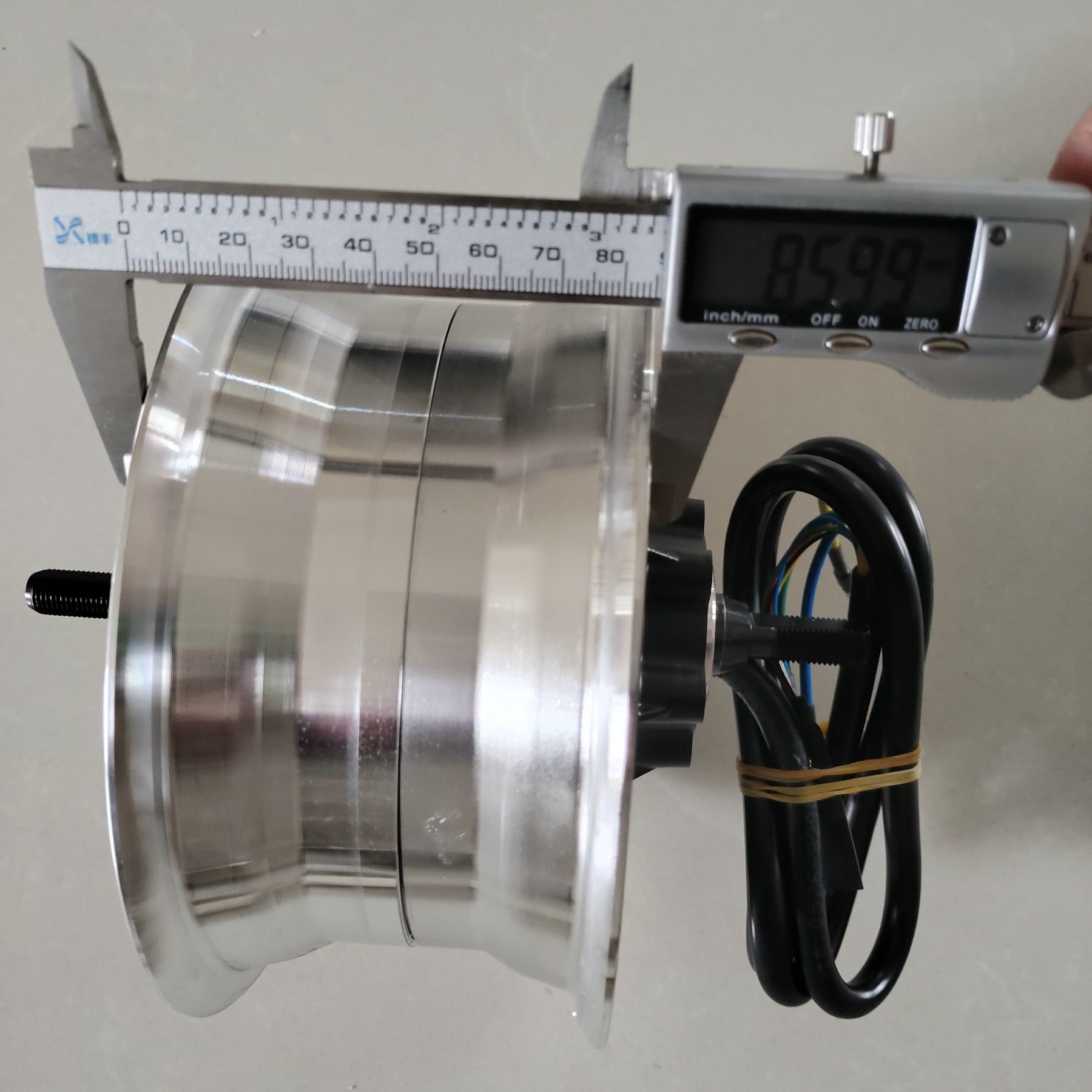

axle length 210mm
need tyre 90/65-6.5)
rim size 85mm
size :outside diameter include tyre 280mm . tyre width 90/100
net weight 7kg
for 60v3000w revolution is 2400rpmif u have old motor like this bellow, u can all order from here our store, the new motor to replace it,
such as old motor 1: 60V 1600W Use for FLJ T113 scooter; Motor with 45mm Magnets ( use 25A or 37A controller)
sample
2: 60V 2800WÂ Â Use for FLJ T112,K3,S8 scooters; Motor with 45mm Magnets ( use 37A or 45A controller)
3: 60V 3000W : Use for FLJ SK3 60V scooter; Motor with 60mm Magnets(use 45A controller)
4: 72V 3500W :Â Â Use for FLJ SK3 72V scooter; Motor with 60mm Magnets ( use 45A controller)
3: 60V 3000W : Use for FLJ SK3 60V scooter; Motor with 60mm Magnets(use 45A controller)
4: 72V 3500W :Â Â Use for FLJ SK3 72V scooter; Motor with 60mm Magnets ( use 45A controller)

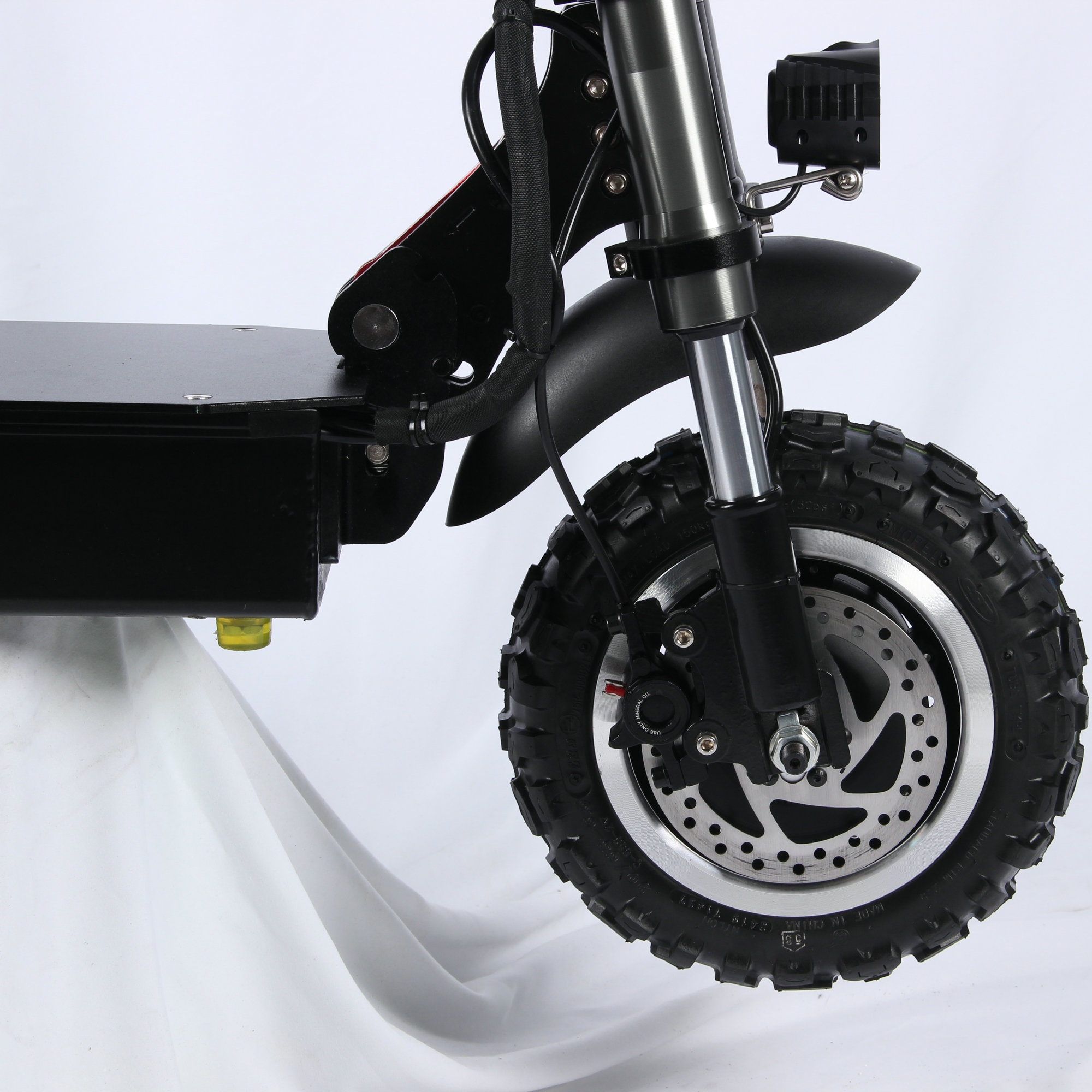

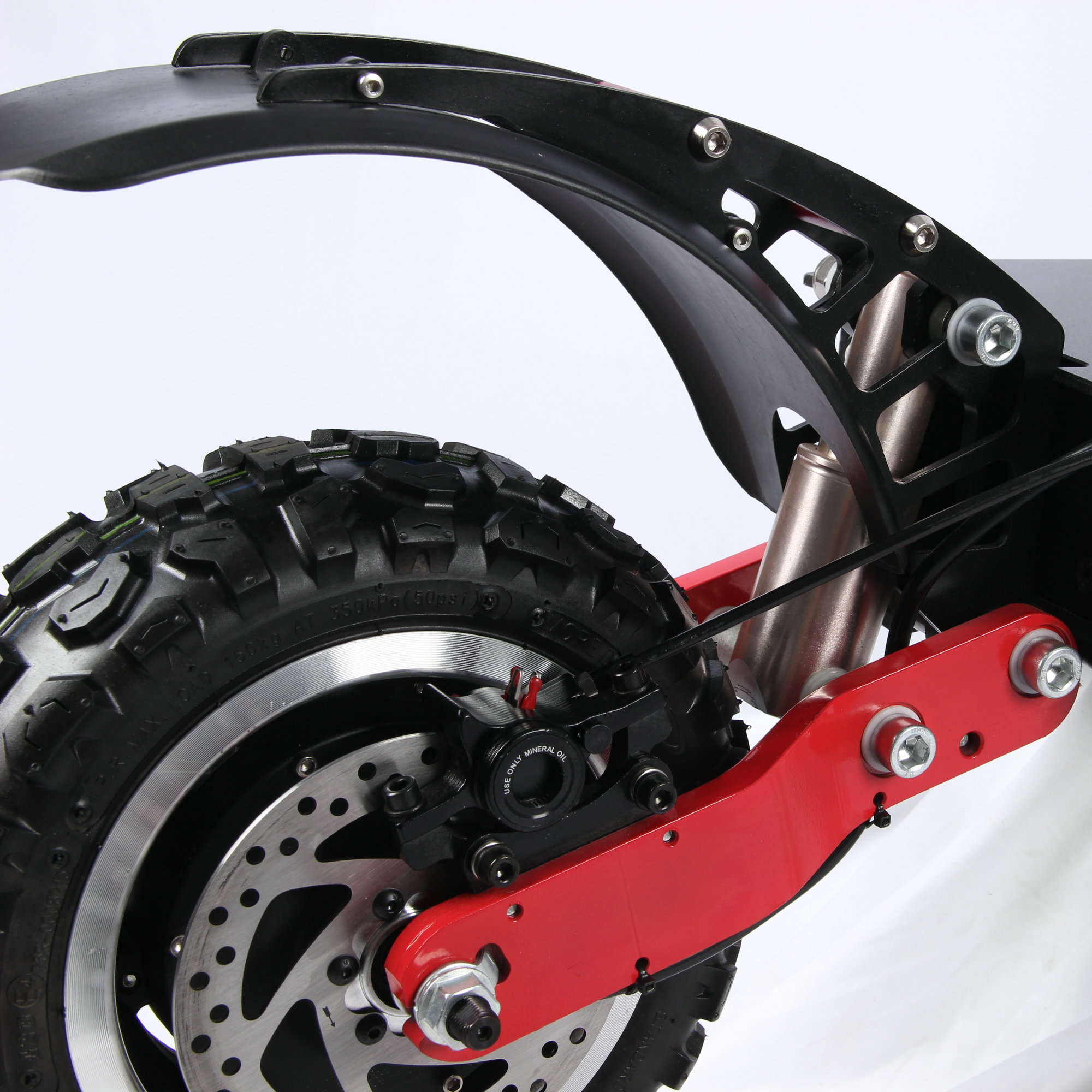

this motor is for scooter like this bellow, big power , front rear are both motors
if order 2 motors and match together with our controller
it can reach to speed max 110km/h.
but certainly u need test by gps
display can only indicate speed about 99km/h
since motor is heavy please talk with salesperson for freight and shipping way
we can also sell the whole scooter
11inch scooter dual driven with a battery max 60v 32a
10inch scooter with a battery max 48v 26A
IT CAN BE single pole or dual poles
if order 2 motors and match together with our controller
it can reach to speed max 110km/h.
but certainly u need test by gps
display can only indicate speed about 99km/h
since motor is heavy please talk with salesperson for freight and shipping way
we can also sell the whole scooter
11inch scooter dual driven with a battery max 60v 32a
10inch scooter with a battery max 48v 26A
IT CAN BE single pole or dual poles
Specification
|
item
|
value
|
|
outside diameter
|
include tyre 280mm
|
|
Application
|
electric scooter conversion
|
|
power
|
48v1600w or 60v3000w
|
